A glass of water, a prism, a pendulum, and melting ice on a sunlit wooden table.

A connected guide to physics · 21 ideas

How Reality Works

A guided journey from a glass on a table to atoms, quantum fields, black holes, and the unfinished edges of physics.

Start with one quiet glass of water. To explain why it falls, shines, warms, flows, and stays solidly on a table, we will need nearly every great idea in physics.

Begin with the glass Reviewed through July 2026

One scene, almost all of physics

Put a glass of water on a table

It looks still. It is anything but. Earth is turning beneath it. Molecules are colliding inside it. Light is exchanging energy with its surface. Gravity pulls downward, while electromagnetic interactions and quantum exclusion make the table push back instead of letting the atoms in the two objects pass through one another.

Physics begins when we stop treating those statements as labels and ask what each one lets us predict. How far will the glass fall? Why does the table feel firm? Why does hot water cool? Why can light cross the room while sound cannot cross a vacuum?

We will build the answers in the order a curious person might discover them: measure a change, find a pattern, test its limits, and replace it only when a wider pattern explains more. Each chapter keeps the simple picture visible while an optional layer makes the idea mathematically precise.

You do not need calculus to follow the main path. When an equation appears, it is translated into ordinary language and every symbol is named.

How sure are we?

Not every claim rests on the same kind of evidence.

Each idea carries one of these labels. It tells you whether we saw something directly, inferred it from effects, rely on a framework that has survived hard tests, or are still asking the question.

Direct observation
Measured in an experiment or survey.
Inferred from evidence
The best explanation of several observed effects.
Well-tested framework
A model repeatedly checked across different situations.
Open question
Evidence is incomplete or rival explanations remain.
01

How can we know what nature is doing?

Learning to ask nature answerable questions

Physics does not begin with a formula. It begins when we turn a wonder into a question whose answer could surprise us, then compare that answer with the world. Measurement gives the question a public result; scale and models tell us what that result means and where it stops applying.

The glass at this scaleThe glass becomes a set of answerable questions: its height, mass, temperature, motion, and the uncertainty of every reading.

First move · Measurement

A number is an answer with edges

If you time ten swings of a pendulum five times, why do you not get exactly the same answer?

Your finger starts late once, the pendulum is released from a slightly different angle, and the clock rounds each reading. The pendulum has not abandoned physics. The spread is part of what your experiment knows.

A measurement is a physical comparison. A ruler compares a length with marked intervals; a clock compares an event with repeated ticks; a camera turns arriving light into recorded signals. The instrument never hands us the whole object. It records a response to one carefully chosen question.

Repeated readings usually differ. Some differences wander unpredictably from trial to trial; averaging can reduce their effect. Others lean the answer in one direction because of calibration, procedure, selection, or an incomplete model. Repetition alone does not remove that systematic bias.

A result is therefore more than a bare number. It names what was measured, gives a value and unit, reports an uncertainty, and explains how the instrument was calibrated. That uncertainty is not an apology. It marks the range of values reasonably compatible with the evidence and method.

Physics then performs an additional step: inference. Detector readings are compared with a model that connects the hidden quantity of interest to the visible record. An astronomer does not hold a star against a ruler; distance is inferred from light, geometry, calibration, and a stated model.

The turn

Precision is not the number of digits on a screen. It is knowing what those digits refer to, how much they may vary, and which assumptions connect them to the claim.

  • Repeated readings
  • Reference mark
  • Calibration check
Scatter and bias are different problems. More trials shrink some random uncertainty; calibration addresses a shared offset.
Make it preciseFrom repeated readings to a defensible result

Suppose repeated readings of the same defined quantity are x₁, x₂, …, xₙ. Their average estimates a central value; their spread estimates one contribution to uncertainty. A complete analysis also includes calibration, resolution, environmental effects, and model assumptions.

The quantity intended to be measured is called the measurand. Defining it matters: “the pendulum's period” is incomplete unless the release angle, timing convention, environment, and relevant corrections are clear enough for the desired precision.

Random scatter and systematic effects require different remedies. More independent trials can tighten an estimate limited by random scatter. A clock that consistently runs slow can produce thousands of tightly clustered but biased readings, so it must be calibrated or the remaining correction uncertainty included.

Uncertainties from independent contributions are commonly combined in quadrature. That rule follows from adding variances, not from a belief that every error has the same origin. Correlated contributions require their covariance to be included rather than treated as independent.

A quoted interval is meaningful only with its convention. A standard uncertainty often behaves like an estimated standard deviation; a wider interval may be reported with a coverage factor. The procedure, model, and coverage meaning belong beside the number.

x bar equals the sum of the readings divided by the number of readings

The arithmetic mean is a common estimate of the central value for repeated, comparable readings.

xᵢ
the i-th reading · same unit as the measurand
n
number of readings
mean of the readings · same unit as the measurand
combined uncertainty equals the square root of the sum of squared independent uncertainties

Independent standard-uncertainty contributions combine through their variances.

uⱼ
one independent standard-uncertainty contribution · same unit as the measurand
u(combined)
combined standard uncertainty · same unit as the measurand
m
number of uncertainty contributions
  • Resolution asks which differences an instrument can distinguish.
  • Accuracy asks how closely a result agrees with the relevant reference value, when that value is available.
  • Precision describes the closeness of repeated results under stated conditions; it does not guarantee accuracy.
  • Uncertainty quantifies the range of values reasonably attributable to the measurand from the information used.
Pause and predictA miscalibrated thermometer gives 21.0 °C every time. Is repeating the reading enough to make the answer accurate?

No. Repetition may show that the readings are precise, but it cannot by itself reveal or remove a shared calibration bias. The thermometer must be checked against standards or an independent method, and the remaining uncertainty reported.

Second move · Scale and models

The useful description depends on how closely you look

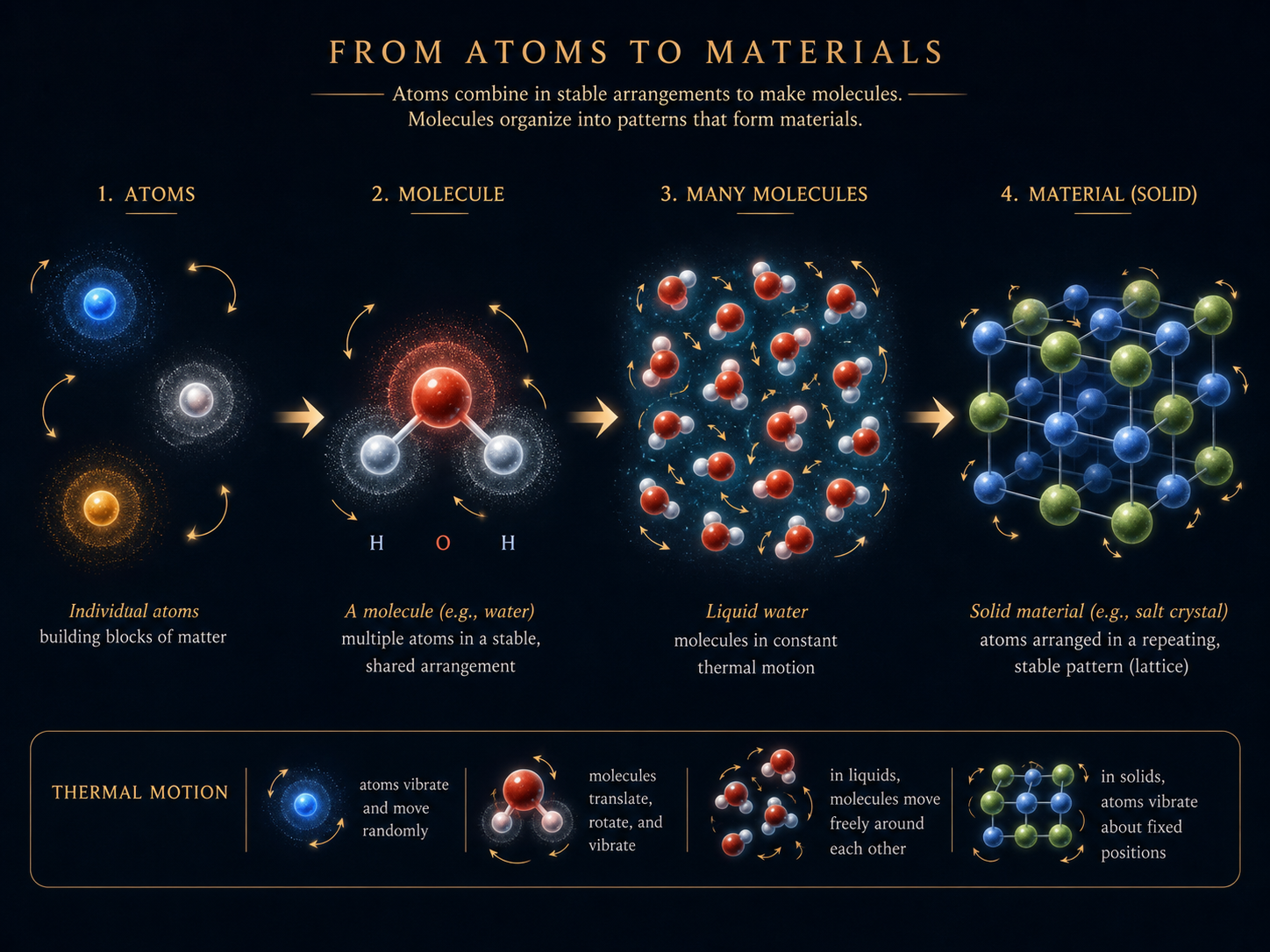

Is a glass of water a smooth fluid, a crowd of molecules, a collection of atoms, or a pattern in quantum fields?

All four descriptions can be right. The useful one depends on the question. A plumber does not need a wavefunction to predict flow through a pipe; an atomic spectroscopist cannot treat the water as perfectly smooth.

A model keeps the features needed for a question and deliberately leaves others out. A map omits individual blades of grass so that roads remain visible. Physics does the same with frictionless surfaces, point masses, ideal gases, smooth fluids, and many other controlled simplifications.

Scale decides which details matter. Over a few metres, Earth can be treated as a flat floor. For a satellite orbit, its curvature and changing gravitational direction matter. At atomic scales, the continuous solid floor is no longer the right set of variables.

Orders of magnitude keep comparisons honest. A bacterium is not merely “small”; it is roughly a million times longer than an atomic nucleus. Powers of ten let the mind cross ranges that ordinary language compresses into the same word.

Theories also have scales of validity. Newtonian mechanics is extraordinarily accurate for many everyday motions, even though relativity revises it near light speed and quantum physics revises classical expectations at small action. A deeper theory explains why the earlier model worked in its proper limit.

The turn

Understanding does not require tracking everything. It requires knowing which differences could change the answer and which can safely be ignored.

  • Human scale
  • Molecular and atomic scales
  • Nuclear scale
The object remains the same; the variables that make prediction manageable change with scale and question.
Make it preciseApproximation as a controlled scientific tool

A useful approximation names a small parameter or a separation of scales. It does not merely declare a complication unimportant; it shows why omitting that complication changes the answer by less than the precision required.

Dimensionless ratios tell us which regime we occupy. If an object's speed v is tiny compared with the speed of light c, the ratio v/c is small and Newtonian predictions approximate relativistic ones. If the object becomes fast enough that this ratio is no longer negligible, the approximation announces its own failure.

Dimensional analysis constrains possible relationships. Energy can be measured in kilogram metre squared per second squared. Any proposed expression for energy must reduce to the same dimensions, although several dimensionally correct expressions may still need experiments to distinguish them.

Coarse-graining replaces many microscopic variables with a few collective ones. Pressure and temperature can describe roughly 10²³ molecules without following every collision. The microscopic detail has not vanished; its influence has been summarized in stable macroscopic quantities and statistical laws.

An effective theory is organized around a range of scales. It makes reliable predictions there and often includes correction terms that estimate the size of neglected effects. This is why limited scope can be a source of precision rather than embarrassment.

the scale ratio equals the larger length divided by the smaller length, which can be written as a power of ten

A ratio without units compares two scales directly and records how many powers of ten separate them.

L(large)
the larger comparison length · m
L(small)
the smaller comparison length · m
R
dimensionless scale ratio
Δn
difference in orders of magnitude
epsilon equals speed divided by the speed of light

This dimensionless parameter helps judge whether relativistic corrections may matter.

v
speed of the object relative to the chosen frame · m/s
c
speed of light in vacuum · m/s
ε
speed as a fraction of light speed
  • Name the question before choosing the model.
  • Identify the variables the model keeps and the details it ignores.
  • Find a dimensionless ratio that controls the approximation when possible.
  • Check units, limiting cases, and the expected size of omitted effects.
  • State the domain in which the prediction has been tested.
Pause and predictIf general relativity is deeper than Newtonian gravity, why do engineers still use Newton's equations?

Because for weak gravity and speeds far below light speed, relativity reduces extremely closely to Newtonian predictions. Newton's model is simpler, accurate in that regime, and its neglected corrections can be estimated. Deeper does not mean older successful limits become useless.

Carry this forwardCarry two habits into every later chapter: attach uncertainty to every measured number, and attach a domain of validity to every model.

Continue to Motion
02

How does motion change, and what survives the change?

Motion, conservation, and the edge of predictability

A tossed ball, an orbiting moon, and a vibrating guitar string look like different stories. Classical mechanics reveals a common structure: specify a state, apply a rule for change, and look for quantities the change cannot erase. It also teaches humility—simple deterministic laws can produce motion that becomes practically unpredictable.

The glass at this scaleThe glass stays still only relative to the table. Treat glass, table, and Earth as one system and the balanced forces and momentum transfers come into view.

Everyday rulebook · Motion

Motion is a change of relationship

If you toss a ball straight up while riding a smooth skateboard, where does it land?

To you, the ball rises and falls into your hand. To someone beside the path, it traces a forward arc. Neither observer owns the one true picture of the path; both relate positions to a chosen frame, and both can predict the same reunion of ball and hand.

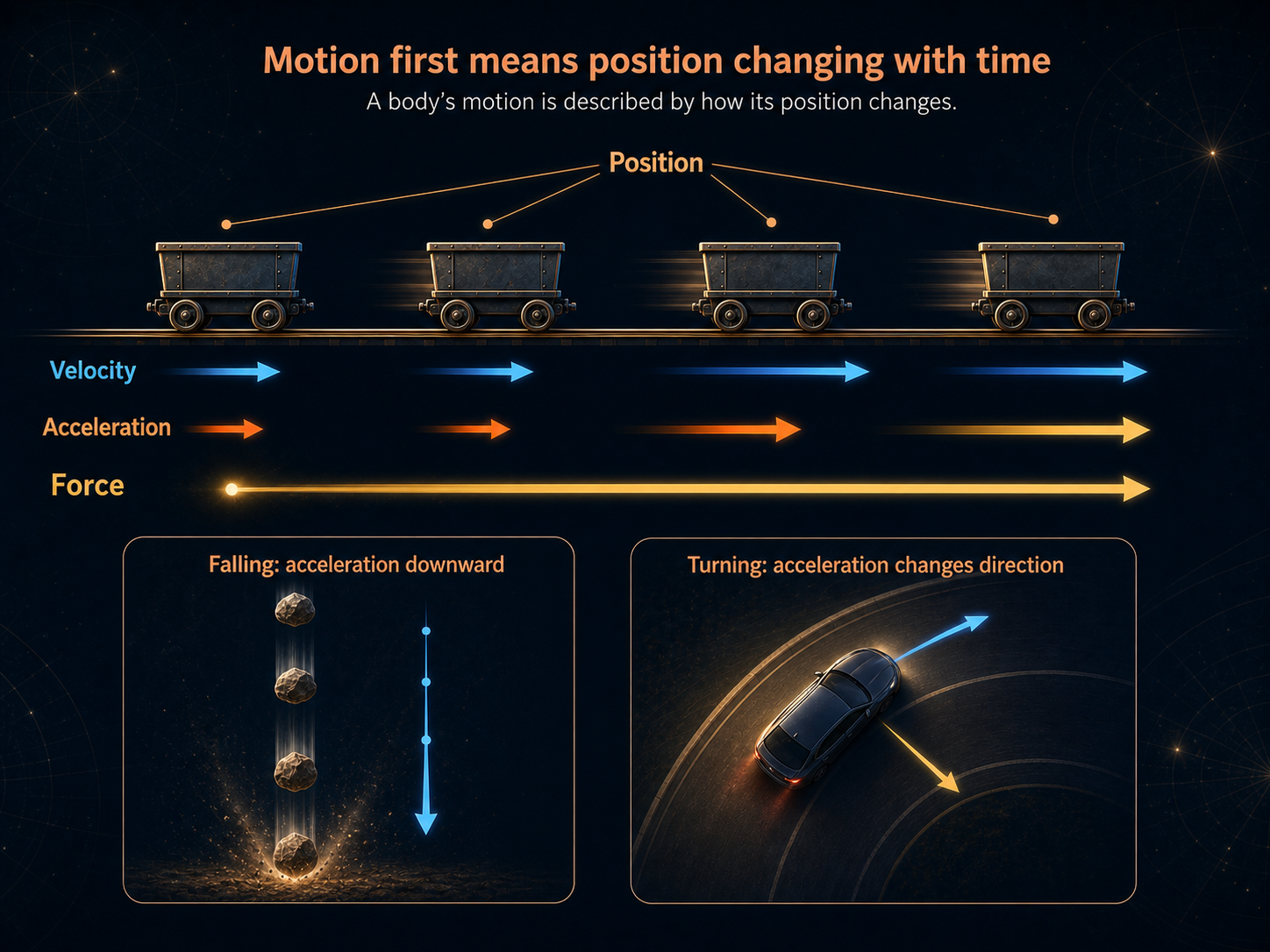

Position tells where an object is relative to a chosen origin. Velocity tells how that position is changing; acceleration tells how velocity is changing. An object can move quickly with no acceleration, or pause for an instant while still accelerating, as a tossed ball does at its highest point.

Newton's first law identifies the simplest motion: without a net interaction, velocity remains constant. Motion does not need a continuing push. A net force is instead a way of describing how interactions change momentum.

Newton's second law turns that statement into a prediction. Add the relevant forces as vectors, specify the object's mass and initial state, and the equation determines its acceleration. Solving the equation step by step builds the later trajectory.

Newton's third law says interactions are mutual: the ball pulls Earth while Earth pulls the ball. The forces are equal in magnitude, but the much more massive Earth changes velocity by an enormously smaller amount. The paired forces act on different objects, so they do not cancel on either object alone.

Newtonian gravity links the tossed ball to the Moon. Outside a roughly spherical mass M, inward gravitational acceleration weakens as GM/r². Give an object enough sideways speed and, instead of reaching the ground, it keeps falling while Earth's surface curves away beneath it. An orbit is continuous free fall around Earth, not motion beyond gravity's reach.

The turn

A force is not something motion uses up. It measures an interaction that changes momentum; once the net interaction disappears, motion continues rather than needing to be replenished.

  • Starting event
  • Path through space and time
  • Later event
Paths depend on the reference frame; the predicted meeting event does not.
Make it preciseState, rate of change, and an equation of motion

In one dimension, a classical particle's state at an instant can be specified by its position and velocity. Derivatives express how that state changes locally; integrating the acceleration with initial conditions reconstructs the motion.

Velocity is the slope of a position-versus-time graph. Acceleration is the slope of a velocity-versus-time graph and the curvature of a position graph. The area under a velocity graph gives displacement; the area under an acceleration graph gives the change in velocity.

Momentum packages mass and velocity. For a fixed collection of matter, the net external force equals the time rate of change of its total momentum. A rocket or other object exchanging mass needs extra care: outgoing or incoming material carries momentum across the chosen boundary, so differentiating that object's mv without the momentum flux is incomplete.

For constant mass, the net vector sum of interactions equals mass times acceleration. Components along perpendicular axes can be solved separately and recombined, which is why the same law handles a projectile's horizontal and vertical motion.

For a roughly spherical source, Newtonian gravity points toward the center and follows an inverse-square rule. A circular orbit occurs when this inward acceleration bends the velocity by exactly the amount needed to keep the radius constant; other bound starting states trace ellipses. The same rule therefore connects a nearby fall with planetary motion.

The model assumes an inertial frame and classical regime. At speeds near c, relativistic momentum replaces mv. At atomic scales, a wavefunction rather than one exact classical trajectory is generally required.

velocity is the rate of change of position, and acceleration is the rate of change of velocity

These derivatives connect a trajectory to its instantaneous motion.

x
position in the chosen frame · m
t
time · s
v
velocity · m/s
a
acceleration · m/s²
net force equals the rate of change of momentum; for a constant-mass particle, momentum is mass times velocity

Interactions update the momentum of a classical object.

F⃗net
vector sum of external forces · N
p⃗
momentum · kg m/s
m
mass · kg
v⃗
velocity · m/s
t
time · s
gravitational acceleration equals G times the source mass divided by distance squared

Outside a roughly spherical source, Newtonian gravitational acceleration points inward and follows an inverse-square law.

a(g)
magnitude of gravitational acceleration · m/s²
G
Newtonian gravitational constant · m³ kg⁻¹ s⁻²
M
mass of the spherical source · kg
r
distance from the source's center · m
  • Choose the system boundary and reference frame before listing forces.
  • Draw forces on one object at a time; interaction partners belong on separate diagrams.
  • Initial position and velocity are part of the prediction, not consequences of the law alone.
  • Test the solution's units and simple limits before trusting its numerical detail.
Pause and predictAt the very top of a tossed ball's flight, are its velocity and acceleration both zero?

Its instantaneous vertical velocity is zero, but its acceleration is still downward, approximately g near Earth's surface. That nonzero acceleration immediately changes the velocity from upward to downward.

Rules behind the rules · Conservation

Change the scene; keep the law

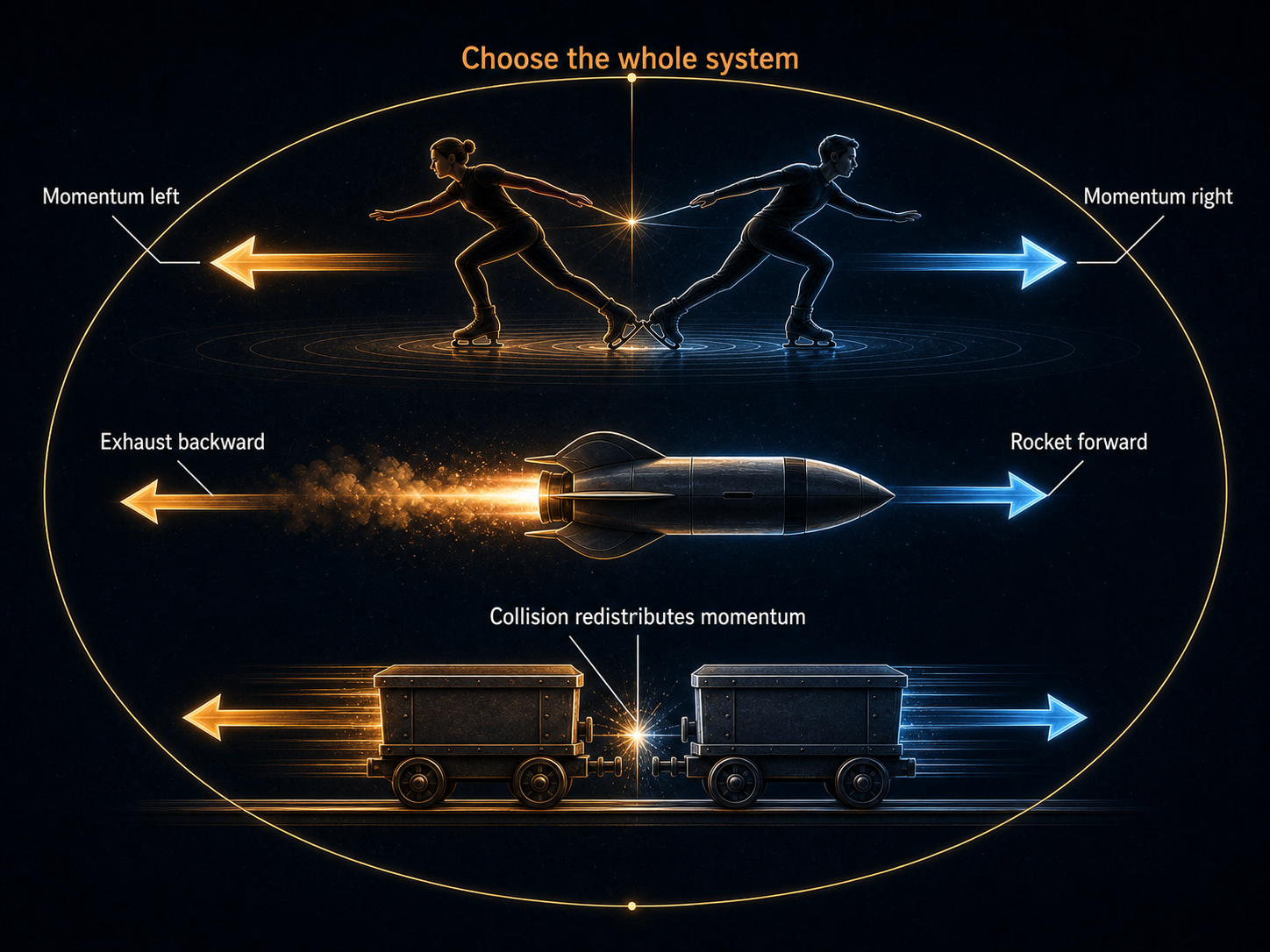

When two carts collide and their individual motions change completely, what can remain exactly the same?

Add the momentum of both carts before the collision and again afterward. If external influences are negligible, the total matches even though neither cart keeps its own momentum. Nature preserves a relationship across the whole chosen system.

A conserved quantity is not required to stay in one object or one form. Momentum can pass between colliding carts. Energy can move from motion into a compressed spring, heat, sound, or light. The total remains fixed only for a system whose relevant exchanges with its surroundings are included or controlled.

Momentum tracks the symmetry of place: the fundamental rules do not change when an isolated experiment is moved elsewhere. Angular momentum tracks rotational symmetry. Energy tracks the fact that the same fundamental experiment follows the same rules tomorrow as today.

These pairings are not just memory tricks. When the fundamental rule for an isolated experiment gives no special status to one place, direction, or starting date, the mathematical ledger gains a quantity that must balance. The precision layer derives this connection and gives the deeper theorem its name.

Symmetry does not mean every finished object looks symmetric. It asks whether a transformation leaves the law or physical situation unchanged. A lopsided trajectory can still be governed by rotation-symmetric laws because the initial conditions or surroundings select a direction.

The turn

When details become complicated, ask what the laws forbid from changing. An invariant can reveal the answer without following every jolt, vibration, or collision.

  • Stored quantity
  • Transfer
  • Unchanged total
Conserved totals can be redistributed among objects and forms. The system boundary determines which transfers are internal.
Make it preciseFrom bookkeeping laws to Noether's theorem

Conservation can first be used as before-and-after accounting. A deeper formulation assigns each possible history an action, then asks which smooth changes to the description leave that number—and therefore the rule selecting the physical history—unchanged.

For an isolated collection of classical particles, internal interaction forces transfer momentum among members while the total remains constant. External impulse changes the total momentum, so the system boundary and time interval must be explicit.

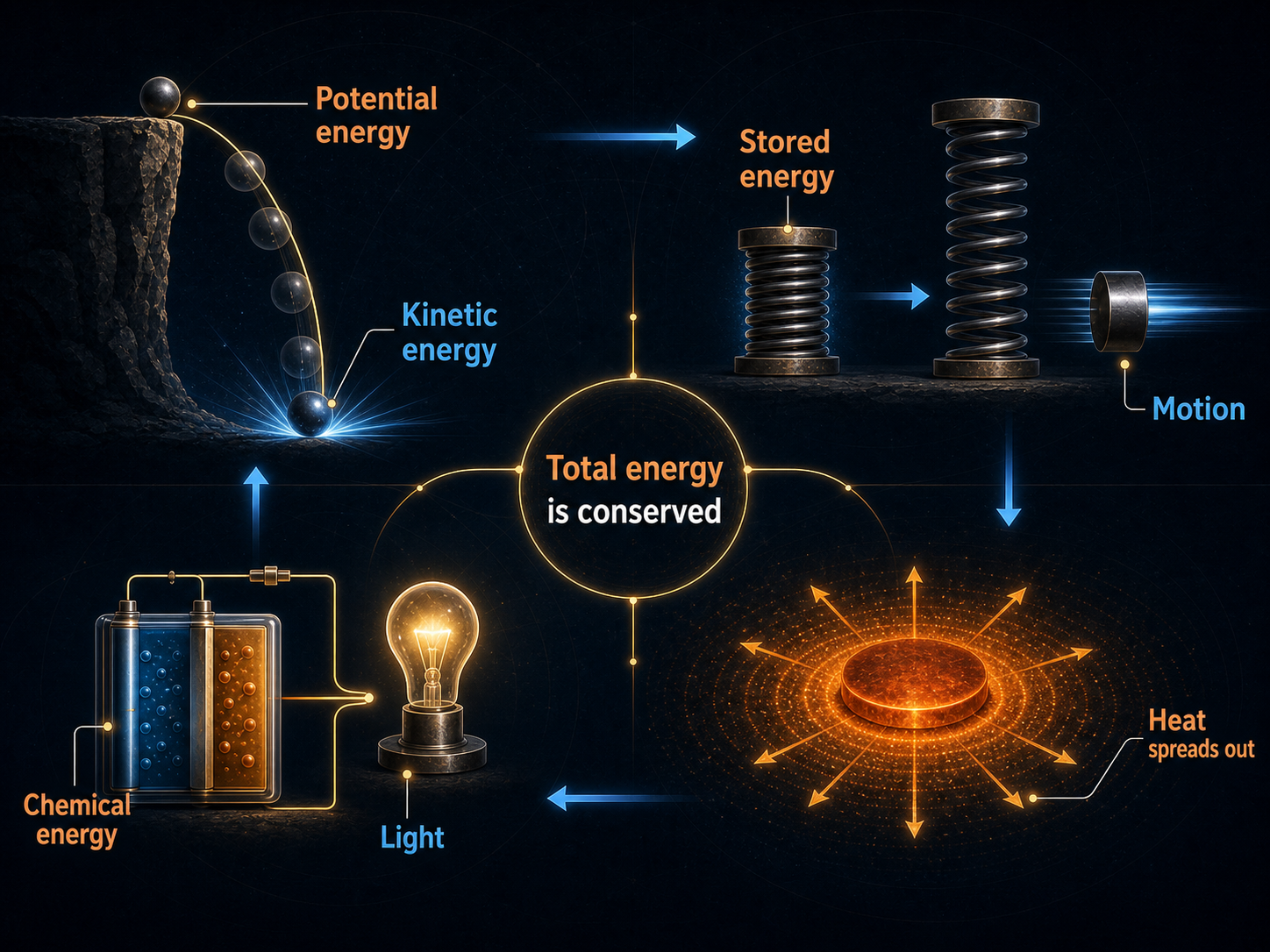

Mechanical energy combines kinetic energy with potential energy for conservative interactions. Friction does not make energy disappear; microscopic motion, deformation, and internal energy receive it. Whether those forms are tracked determines whether the smaller mechanical ledger appears to balance.

Angular momentum combines position relative to an origin with momentum. An external torque changes the total. A skater pulling in their arms changes moment of inertia and angular speed while approximately preserving angular momentum.

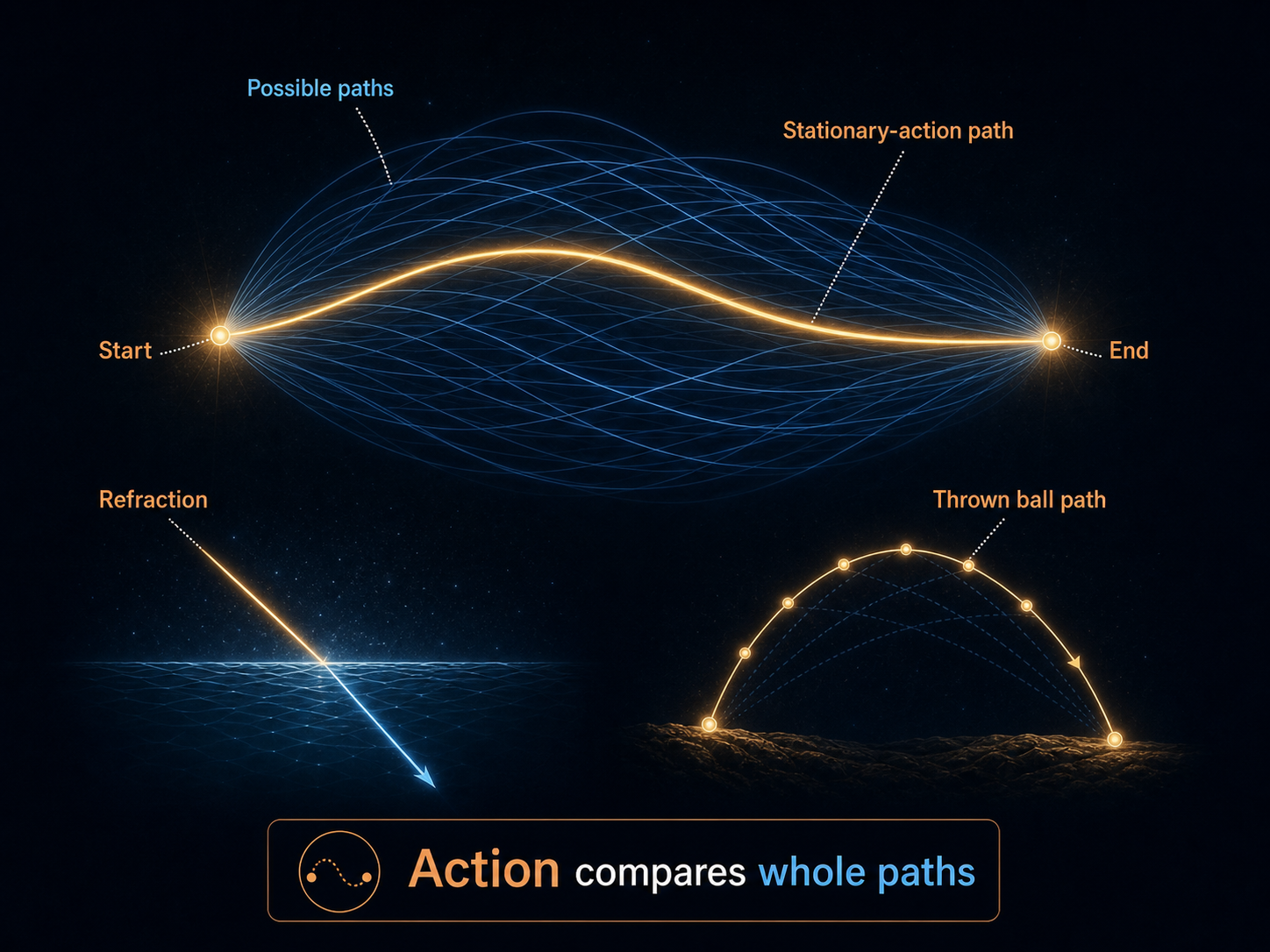

For a simple nonrelativistic conservative system, the Lagrangian is L = T − U and the action S is its time integral. Other systems can require a different Lagrangian. The realized motion makes the action stationary against small changes of path. If shifting a coordinate by any small amount leaves the action unchanged, Noether's theorem identifies a quantity whose flow balances exactly. The familiar three pairings are special cases of this result.

total momentum is the sum of each momentum, and its rate of change equals the net external force

With no net external force, the total momentum of the chosen system is conserved.

P⃗
total momentum · kg m/s
p⃗ᵢ
momentum of object i · kg m/s
F⃗external
net external force on the system · N
t
time · s
mechanical energy equals kinetic plus potential energy; kinetic energy is one half mass times speed squared

For conservative interactions, kinetic and potential forms can exchange while their sum remains constant.

E
mechanical energy · J
K
kinetic energy · J
U
potential energy · J
m
mass · kg
v
speed · m/s
angular momentum is position crossed with momentum, and its rate of change equals external torque

With no net external torque, total angular momentum about the chosen origin is conserved.

L⃗
angular momentum · kg m²/s
r⃗
position relative to the chosen origin · m
p⃗
momentum · kg m/s
τ⃗external
net external torque · N m
t
time · s
  • Time translation ↔ energy conservation.
  • Spatial translation ↔ momentum conservation.
  • Spatial rotation ↔ angular-momentum conservation.
  • The pairing requires a continuous symmetry and a correctly defined system; it is not a slogan that every visual symmetry creates a new conserved number.
Pause and predictA sliding block stops because of friction. Has its energy been destroyed?

No. The block's organized kinetic energy is transferred mainly into microscopic motion and deformation in the block and surface, with some sound. Mechanical energy of the block alone decreases; total energy of a sufficiently inclusive system does not.

Simple rules, rich motion · Oscillation

A swing teaches both prediction and its limits

Why can tiny, well-timed pushes make a swing climb high while stronger badly timed pushes do almost nothing?

A displaced swing is pulled back toward equilibrium and overshoots because it has momentum. Push in step with its natural rhythm and each addition arrives with the right phase. The motion grows through resonance, not because one push was enormous.

An equilibrium is a state in which competing effects balance. If a small displacement produces a force back toward that state, the equilibrium is stable. Inertia carries the object past the balance point, so stored potential energy and kinetic energy trade places repeatedly.

Near many stable equilibria, the restoring force is approximately proportional to displacement. This simple harmonic oscillator appears in pendulums at small angles, springs, musical instruments, molecules, electric circuits, solids, fields, and quantum systems.

Driving adds energy most efficiently when its rhythm and phase match the oscillator. Damping removes organized energy into other degrees of freedom and limits the growth. Coupled oscillators share motion through normal modes; a travelling wave is what this local coupling looks like across many neighbours.

Real systems are often nonlinear. A swinging pendulum at large angles no longer follows the small-angle rule. Some nonlinear systems are chaotic: their laws remain deterministic, yet nearby starting states separate so quickly that finite measurement precision limits long-range prediction.

The turn

Predictability depends on both the law and how rapidly uncertainty in the starting state grows. Exact rules do not promise exact forecasts forever.

  • Local swing
  • Repeating wave
The same laboratory reveals resonance under matched driving and the growth of initial uncertainty in nonlinear chaotic motion.
Make it preciseFrom harmonic motion to sensitive dependence

The driven, damped oscillator is a compact laboratory for differential equations. Its terms separately represent inertia, energy loss, restoration, and an external drive, so changing one physical ingredient changes one mathematical term.

With no damping or drive, a mass on an ideal spring oscillates at angular frequency ω₀ = √(k/m). The amplitude depends on initial conditions, but the small-oscillation frequency does not. Kinetic and spring potential energy exchange while their total stays constant.

Damping turns organized motion into internal energy. A periodic drive can replace that loss. The steady response is largest near resonance, but damping makes the peak finite and shifts phase between the drive and response.

The exact pendulum contains sin θ rather than θ. Replacing sin θ with θ is a small-angle approximation; it reveals why the oscillator model appears, while the exact term predicts amplitude-dependent timing and richer driven behaviour.

In a chaotic regime, an initial separation δ₀ may grow approximately exponentially for a time. The Lyapunov exponent λ measures the average rate of that separation. Because every real initial measurement has finite uncertainty, the useful forecast horizon can be finite even when the evolution law contains no randomness.

mass times acceleration plus damping times velocity plus spring stiffness times displacement equals a periodic driving force

One equation separates inertia, damping, restoration, and external driving in a classical oscillator.

m
oscillating mass · kg
x
displacement from equilibrium · m
b
linear damping coefficient · kg/s
k
spring stiffness · N/m
F₀
driving-force amplitude · N
ω
driving angular frequency · rad/s
t
time · s
natural angular frequency equals the square root of stiffness divided by mass

A stiffer spring oscillates faster; a larger mass oscillates more slowly in the ideal small-amplitude model.

ω₀
undamped natural angular frequency · rad/s
k
spring stiffness · N/m
m
mass · kg
a small separation grows approximately like its initial value times e to the Lyapunov exponent times time

Positive λ describes exponential sensitivity to nearby initial conditions over the regime where this approximation holds.

δ₀
initial separation between nearby states · depends on the state variable
δ(t)
later separation · same as δ₀
λ
Lyapunov exponent · 1/s
t
elapsed time · s
  • Linearization explains why the same oscillator appears near many stable equilibria.
  • Normal modes turn a coupled many-part problem into independent patterns in the linear approximation.
  • Resonance transfers energy; it does not create energy from nothing.
  • Chaos is deterministic sensitive dependence, not the same thing as quantum probability or ordinary measurement noise.
Pause and predictIf a chaotic pendulum obeys exact equations, why can its motion become hard to predict?

Nearby initial states can separate exponentially. Because position and velocity can only be prepared and measured to finite precision, the range of compatible future trajectories eventually becomes large. The rule may remain exact while the useful forecast loses precision.

Carry this forwardCarry forward the distinction between an evolving state and an invariant rule. Waves, fields, relativity, quantum theory, and cosmology will all reuse it.

Continue to Waves & fields
03

How can a pattern travel farther than the matter that carries it?

A wave carries a pattern. A field gives every place something to do.

Shake one end of a rope and the far end answers even though no piece of rope races from your hand to your friend. Switch on a radio and music crosses the room without a visible messenger. Waves and fields are the ideas that turn those familiar surprises into one connected account of sound, light, electricity, magnetism, and eventually quantum physics.

The glass at this scaleLight crosses the room as a changing electromagnetic field, refracts through the water, and delivers the information that lets your eyes see the glass.

Patterns that travel

The stadium wave goes around the arena. The people do not.

When a pulse runs along a rope, what exactly has traveled?

Tie a ribbon to the middle of a long rope, hold one end, and flick your hand once. The pulse reaches the other end, but the ribbon mostly moves up and down. Watch the pattern and the material separately.

A wave is a disturbance that travels. The rope supplies connected pieces with inertia, while its tension supplies a restoring pull. One piece moves its neighbor, that neighbor moves the next, and the shape advances. The rope carries the pulse, but rope material does not ride with the pulse from end to end.

The same distinction unlocks sound. Air molecules jostle nearby molecules and then swing back around their usual positions. What crosses the room is a changing pattern of pressure. A speaker does not fire a stream of air all the way into your ear; it launches compressions and expansions that pass the motion onward.

Every repeating wave has a rhythm and a spacing. Frequency counts cycles per second. Period is the time for one cycle. Wavelength is the distance from one crest to the next matching crest. In one medium, a faster rhythm usually means a shorter spacing because one cycle has less time to travel before the next begins.

Waves add. Two upward displacements can make a larger one; an upward and a downward displacement can cancel at a place. This superposition creates interference, beats, standing waves, and the resonances of instruments. Cancellation does not mean the energy has vanished: the complete wave pattern redirects or stores it elsewhere.

A wave can carry energy and momentum while its medium has little or no net journey. How much it carries depends on the kind of wave and, commonly, grows with the square of the amplitude. Amplitude is not the same as frequency: on a simple sound wave, amplitude is connected with loudness while frequency is connected with pitch.

The turn

Do not ask only, “What object moved from here to there?” A transferable pattern can be the traveler.

40 px
3 Hz
  • Moving disturbance
  • Driven source
  • Sample point
Start the wave, then watch the gold source and dark sample oscillate locally while the disturbance travels across the panel.
Make it preciseOne relation ties the clock to the ruler

The intuitive picture becomes quantitative when we describe both how often the pattern repeats and how far it moves during one repetition.

A sinusoidal traveling wave can be written as y(x,t) = A cos(kx − ωt + φ). The symbols do not add a new mystery: they record amplitude, position, time, spatial repetition, temporal repetition, and starting phase in one compact sentence.

For many small disturbances, the governing equation is linear. If y₁ is an allowed wave and y₂ is an allowed wave, y₁ + y₂ is also allowed. That is why superposition works. Strong waves or nonlinear media can break this simple rule and create shocks, harmonics, or solitary waves.

The wave speed belongs to the system, not merely to the source. Tension and mass density set the speed on a string; elasticity and density set the speed of sound. Frequency is fixed by the source at a boundary, so crossing into a region with a different wave speed changes wavelength instead.

A complicated disturbance can be decomposed into simpler sinusoidal components. This Fourier idea explains musical timbre, image compression, spectra, and why the same mathematics will return when quantum states are expressed as combinations of possible modes.

wave speed equals frequency times wavelength

During one cycle, a repeating pattern advances by one wavelength. This relation is kinematic and applies to any periodic wave.

v
wave speed · metres per second (m/s)
f
frequency · hertz (Hz)
λ
wavelength · metres (m)
period equals one divided by frequency

A process repeating f times each second takes 1/f seconds for each cycle.

T
period · seconds (s)
f
frequency · hertz (Hz)
  • Reflection sends part of a wave back from a boundary.
  • Refraction changes a wave's direction when its speed changes across a boundary.
  • Diffraction spreads a wave after an opening or around an obstacle.
  • Dispersion makes different frequencies travel at different speeds.
Pause and predictA sound source doubles its frequency while the speed of sound stays the same. What happens to the wavelength?

It halves. Since v = fλ and v is unchanged, doubling f requires λ to become half as large.

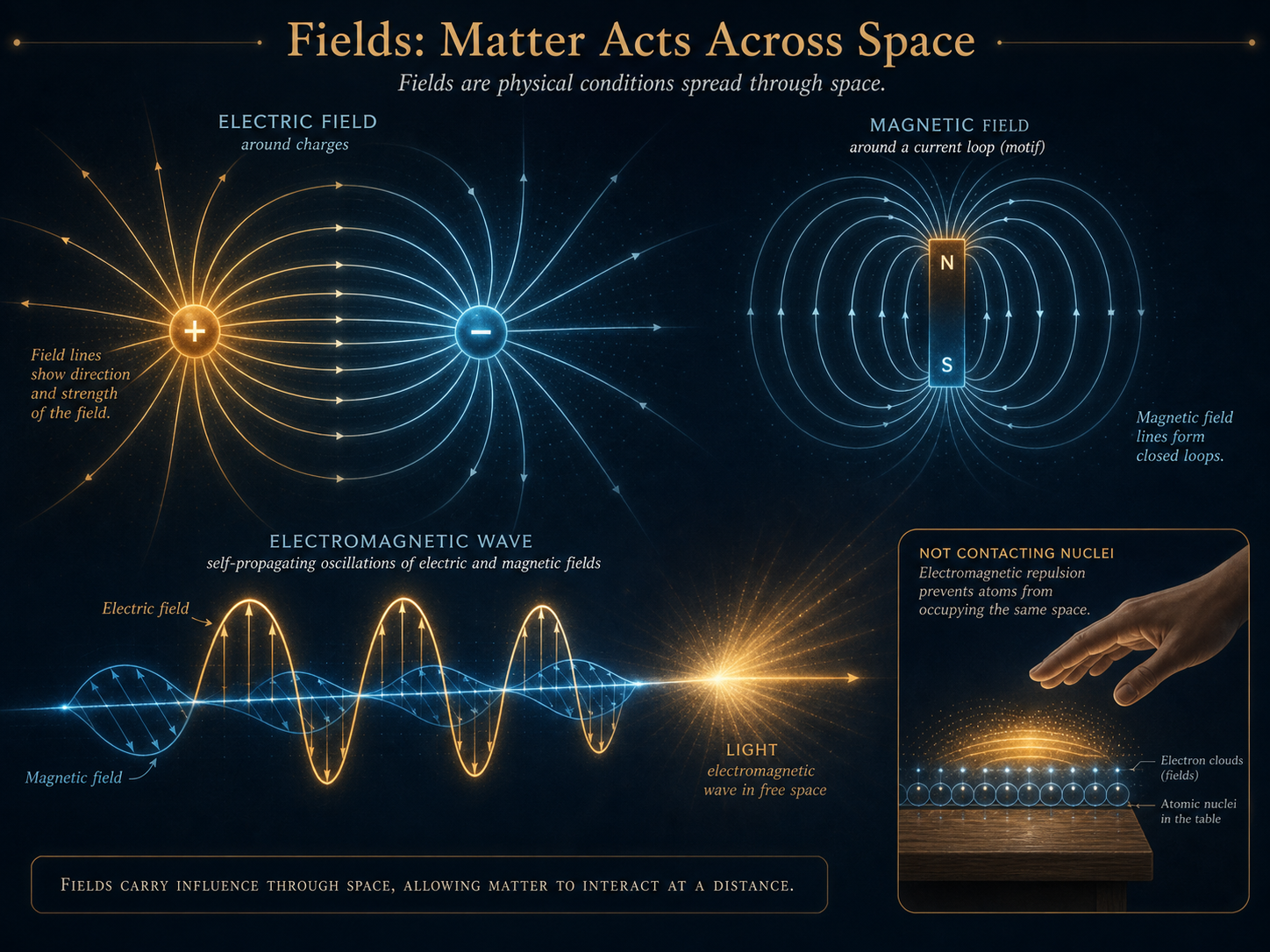

Influence throughout space

A magnet changes the empty-looking space around it.

How can a magnet tug a paper clip without touching it?

Slide a magnet slowly toward a paper clip. The clip moves before contact. Now place the magnet at several positions and imagine asking at every point, “What push would a tiny test object feel here?”

A field assigns a physical value to every place and time. A temperature map assigns a number to each location; a wind map assigns a speed and direction. An electric field assigns the force per unit charge that a small positive test charge would experience. Field-line drawings are maps of that rule, not wires or tracks floating in space.

Electric charge creates electric effects, and an electric field pushes on charge whether the charge is moving or still. In the classical picture, currents—organized motion of charge—produce magnetic fields; quantum particles can also have intrinsic magnetic moments. A magnetic field pushes a moving charge sideways, changing its direction while doing no work on that point charge by itself.

A battery makes this concrete. It maintains an electric potential difference—voltage—between its terminals. Close a conducting loop and an electric field is established through the circuit, nudging electrons already present in the wire into an organized drift: electric current. Resistance measures how strongly a component opposes that current and turns electrical energy into heat, light, motion, or stored chemical energy. The signal and field can spread around a circuit far faster than any one electron drifts from battery to lamp.

Electricity and magnetism are not independent subjects. A changing magnetic field produces a circulating electric field. Currents and changing electric fields produce magnetic fields. Those linked changes can sustain one another and move through vacuum as an electromagnetic wave.

Light is that wave. Radio, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays are one electromagnetic family distinguished mainly by frequency and wavelength. They interact differently with matter because atoms, molecules, and nuclei respond at different energy scales—not because each band is made from a different kind of classical substance.

Electromagnetism explains chemistry, circuits, induction, antennas, and much of the push you feel from a table. It is not the whole story of solidity: the quantum rules for identical electrons, especially the Pauli exclusion principle, are also essential. A good unification clarifies its domain instead of claiming every effect for itself.

The turn

The field is the local instruction built into space: an object responds to the field where it is, and changes in the field do not need to act everywhere at once.

  • Source
  • Second object
  • Field direction
A field gives a local instruction at every point; changes propagate rather than updating distant space instantly.
Make it preciseMaxwell turned separate effects into one dynamical field

The field picture becomes powerful because a few local equations determine how sources, fields, and charged matter evolve together.

The Lorentz force tells how electric and magnetic fields affect a particle of charge q. The electric part can change the particle's speed and energy. The magnetic part is perpendicular to its velocity, so for a point charge it bends the path without directly changing the speed.

Voltage is electric potential energy change per unit charge, while current measures charge passing a cross-section per unit time. For many components over a useful operating range, voltage and current are approximately proportional. Ohm's law summarizes that material response; it is not a universal vacuum law, and a diode, battery, filament, or superconductor need not have one constant resistance.

Maxwell's equations add four structural rules: electric charge is a source of electric field; no isolated magnetic charge has been observed; changing magnetic flux curls electric field around it; and electric current or changing electric field curls magnetic field around it.

The last two rules admit self-propagating solutions. Their predicted speed depends only on the electric and magnetic constants of vacuum and equals c. This was the conceptual shock: optics was not a neighboring subject. Light was electromagnetism traveling.

Fields carry energy and momentum. Radiation pressure, antenna recoil, and the momentum delivered by light are therefore expected, measurable consequences. In quantum theory the electromagnetic field remains, while its exchanges occur in quantized excitations called photons.

voltage equals current times resistance

For an ohmic component over a specified operating range, current grows in proportion to applied voltage.

V
potential difference across the component · volts (V)
I
electric current through the component · amperes (A)
R
electrical resistance in that operating range · ohms (Ω)
force equals charge times electric field plus velocity crossed with magnetic field

The Lorentz force combines electric and magnetic effects on a charged particle. E, v, and B are vectors, so direction matters.

F
force on the particle · newtons (N)
q
electric charge · coulombs (C)
E
electric field · newtons per coulomb (N/C)
v
particle velocity · metres per second (m/s)
B
magnetic field · teslas (T)
light speed equals frequency times wavelength

All electromagnetic waves in vacuum share speed c; changing frequency changes wavelength inversely.

c
speed of light in vacuum · metres per second (m/s)
f
frequency · hertz (Hz)
λ
wavelength · metres (m)
light speed equals one divided by the square root of the vacuum magnetic constant times the vacuum electric constant

In classical electromagnetism, the constants governing electric and magnetic fields determine the wave speed.

c
speed of electromagnetic waves in vacuum · metres per second (m/s)
μ₀
vacuum magnetic constant · henries per metre (H/m)
ε₀
vacuum electric constant · farads per metre (F/m)
  • Electric and magnetic fields depend on the observer's motion; special relativity reveals them as aspects of one electromagnetic field.
  • Field lines are visualization choices. Observable predictions come from field values and their effects, not from counting drawn lines.
  • The classical theory predicts continuous waves; quantum electrodynamics adds quantized interactions without discarding the field.
Pause and predictA radio wave and visible red light cross empty space. Which one is an electromagnetic wave, and which moves faster?

Both are electromagnetic waves, and in vacuum both move at the same speed c. They differ in frequency and wavelength, not vacuum speed.

Carry this forwardCarry this forward: a traveling pattern can transport energy and momentum without transporting matter along with it, and the thing waving need not be a material substance. Quantum theory will keep both lessons and change what a wave can mean.

Continue to Heat & matter
04

How do countless invisible motions become temperature, flow, phases, and an arrow of time?

A crowd of particles can have properties that no particle owns.

One water molecule is not wet, does not flow like a river, and does not possess the temperature of a cup. Put an enormous number of molecules together and new, dependable quantities appear: pressure, temperature, viscosity, phase, entropy. Statistical physics explains how exact microscopic laws produce reliable large-scale behavior without pretending that the large-scale behavior is unreal.

The glass at this scaleThe water is a crowd: molecular motion becomes temperature, intermolecular attraction permits a liquid phase, and energy leaking into the room makes it cool.

Heat, probability, and time

A hot mug cools in a room. The room does not grow colder to make the mug hotter.

If microscopic collisions can run backward, why does spilled milk not leap back into the glass?

Put a metal spoon into a hot drink. The handle warms and the drink cools until they approach a common temperature. The reverse movie is easy to imagine, yet an untouched spoon never makes one end colder while reheating the drink. What makes one direction ordinary and the reverse fantastically rare?

Temperature is not a substance and is not, in general, simply “how fast the particles move.” It is the quantity that settles when systems can exchange energy and reach thermal equilibrium. If two systems have different temperatures, energy tends to transfer as heat from the hotter one to the colder one until no net thermal flow remains.

For a dilute monatomic ideal gas, temperature is directly proportional to the average translational kinetic energy of its molecules. That is an illuminating special case, not the universal definition. Molecules can also rotate and vibrate; solids store energy in collective modes; magnets and quantum systems have other microscopic degrees of freedom.

Heat is energy crossing a boundary because of a temperature difference. Internal energy is the microscopic energy stored in the system. Work is another way energy crosses the boundary, through an organized force acting over a distance or an analogous coordinated change. The first law of thermodynamics is energy conservation with this accounting made explicit.

Now compare macrostates and microstates. “The perfume is spread through the room” is a macrostate. In a classical gas model, one microstate specifies every molecule's position and momentum; in quantum physics, the corresponding description is a many-body quantum state. Either way, vastly more compatible microscopic states look spread out than look gathered in one corner, so an unconstrained system almost always evolves toward the larger region of possibilities.

Entropy measures that multiplicity; in the simplest equal-probability case, it is proportional to the logarithm of the number of compatible microstates. It is not a synonym for mess. The second law says entropy is overwhelmingly likely not to decrease for an isolated macroscopic system. Small fluctuations can occur, and local entropy can fall when more entropy is produced or exported elsewhere.

The thermodynamic arrow of time therefore combines microscopic dynamics, probability, and a special low-entropy past. The laws do not forbid every reverse fluctuation. They say that for a macroscopic number of particles, the reverse occupies such a tiny fraction of possible histories that waiting for it is effectively hopeless.

This arrow is different from a universal cosmic stopwatch. Relativity will show that observers can divide space and time differently, yet each observer can still follow a local system along their own clock and ask whether its entropy increases. Relativity changes the geometry of time; it does not make cooling coffee routinely run backward.

The turn

Irreversibility is not an extra shove added to every molecule. It is what typical microscopic evolution looks like when the number of parts becomes enormous.

Prepared rare state: colors separated

  • Group A
  • Group B
  • Prepared divider
The button compares one prepared separation with one typical mixture. It is a counting lesson, not a collision simulation: vastly more detailed arrangements look mixed.
Make it preciseEnergy is conserved; useful energy becomes constrained

Thermodynamics separates three questions: how much energy a system contains, how energy crosses its boundary, and how many microscopic arrangements realize the state we observe.

Using the convention that W is work done by the system on its surroundings, the first law is ΔU = Q − W. The sign changes in textbooks that define W as work done on the system, so the convention must always be stated; the physical bookkeeping does not change.

For Ω equally likely microstates, Boltzmann's formula is S = kB ln Ω. The logarithm matters: when independent systems are combined, their numbers of possibilities multiply but their entropies add. More generally, entropy includes unequal probabilities and is written −kB Σ pᵢ ln pᵢ.

The second law is statistical. Coarse-grained entropy rises because a low-volume macrostate typically evolves into vastly larger regions of phase space. Exact microscopic information need not literally be erased; it becomes dispersed into correlations that are inaccessible to a practical macroscopic description.

Temperature has a precise thermodynamic definition through how entropy changes with energy: 1/T = ∂S/∂U when other controlled quantities are held fixed. This definition covers systems for which the phrase “average molecular speed” is meaningless and explains why temperature governs the direction of energy exchange.

change in internal energy equals heat added minus work done by the system

The first law tracks energy crossing a system boundary as heat or work. This expression uses the work-by-the-system sign convention.

ΔU
change in internal energy · joules (J)
Q
energy added as heat · joules (J)
W
work done by the system · joules (J)
entropy equals Boltzmann's constant times the natural logarithm of multiplicity

For equally likely microstates, entropy measures the logarithm of how many microscopic states are compatible with the macrostate.

S
entropy · joules per kelvin (J/K)
kB
Boltzmann constant · joules per kelvin (J/K)
Ω
number of compatible equally likely microstates
mean translational kinetic energy equals three halves Boltzmann's constant times temperature

This relation is for one particle in a three-dimensional monatomic ideal gas at equilibrium. It is an example, not a universal definition of temperature.

⟨K(trans)⟩
mean translational kinetic energy per particle · joules (J)
kB
Boltzmann constant · joules per kelvin (J/K)
T
absolute temperature · kelvins (K)
  • Zeroth law: systems in mutual thermal equilibrium share a temperature.
  • First law: energy is conserved when heat and work are counted consistently.
  • Second law: total entropy does not decrease in the thermodynamic limit for an isolated system; finite systems can fluctuate.
  • Third law: approaching absolute zero imposes a limiting entropy structure and cannot be completed by a finite sequence of ordinary operations.
Pause and predictDoes the second law say perfume molecules can never all return to one corner?

No. It says such a large downward fluctuation is fantastically improbable for a macroscopic number of molecules. The law is statistical, not a microscopic wall that forbids every reverse motion.

Collective rules

A crowd can flow, freeze, boil, or ionize into a plasma.

Where does the wetness of water live inside one molecule?

Watch an ice cube melt in a glass. Its molecules remain water molecules, yet rigidity becomes flow. Heat the water and the same molecules separate into vapor. The changing behavior belongs to their organization, not to a new ingredient hidden inside each molecule.

Emergence means that a collection has stable, measurable properties that are not useful attributes of one isolated part. One molecule does not have viscosity, a shoreline, or a speed of sound for the liquid. A sufficiently large collection does, and those quantities obey laws that can be more useful than tracking every molecule.

A fluid is matter that continually deforms under shear instead of keeping a fixed shape. At scales much larger than the molecular spacing, density, pressure, temperature, and flow velocity can be treated as smooth fields. This continuum approximation powers weather prediction, aerodynamics, blood-flow models, and ocean physics while openly ignoring atom-by-atom detail.

Phases are forms of collective organization. A solid resists static shear and keeps a shape over ordinary times: crystals have long-range repeating order, while amorphous solids such as common glass do not. A liquid keeps roughly fixed density but rearranges and flows; a gas expands to fill its container. Phase transitions occur when competing effects—energy, entropy, pressure, and interactions—make a different organization thermodynamically favored.

A plasma forms when enough atoms are ionized that mobile charges and collective electromagnetic behavior matter. It is not merely a synonym for any hot gas. Lightning, fluorescent discharges, the solar wind, stars, and much interstellar material are plasmas whose long-range fields produce waves, filaments, screening, and instabilities.

Collective behavior can surprise us even more. Atoms in a crystal settle into a repeating pattern. Regions in a ferromagnet align. Superfluids flow without ordinary viscosity, and superconductors carry persistent current while expelling magnetic flux. Their explanations require quantum mechanics, but the organizing question is already here: what robust pattern does the crowd choose?

Reduction and emergence are partners, not rivals. Microscopic laws constrain what a material can do; large-scale variables reveal patterns invisible in a list of particles. A complete explanation moves both downward to constituents and upward to the new laws made reliable by scale.

The turn

Knowing every ingredient does not automatically reveal the best explanation of the whole. Scale selects new variables and new regularities.

  • Solid
  • Liquid
  • Gas
As conditions change, the useful description shifts from individual particles to phases, flow, and fields.
Make it preciseContinuum laws compress an impossible number of motions

The undergrad move is to replace a list of particles with fields such as density ρ(x,t), pressure P(x,t), and flow velocity v(x,t), then enforce conservation locally.

Mass conservation gives the continuity equation. It says density at a point changes only when mass flows into or out of the surrounding region. Momentum conservation plus stress and viscosity leads to the Navier–Stokes equations, whose nonlinear term helps make turbulence difficult even though the governing law is compact.

The Reynolds number compares inertial transport with viscous smoothing. Small values favor orderly laminar flow; large values make instabilities and turbulence possible. It is not a magic threshold valid for every geometry, but it organizes experiments that otherwise look unrelated.

Phases are selected by thermodynamic potentials. At fixed temperature and volume, equilibrium minimizes Helmholtz free energy Fₕ = U − TS: low internal energy favors tightly bound order, while the entropy term rewards access to more microscopic arrangements. Their competition can switch the preferred phase as temperature changes.

A phase can have less symmetry than the equations that permit it. Empty space has no preferred crystal origin, yet a crystal chooses a repeating lattice: arbitrary continuous translations no longer preserve its pattern, while shifts by one lattice spacing do. This is one standard example of spontaneous symmetry breaking.

Plasma adds long-range electromagnetic response. Mobile charges rearrange to screen electric fields over characteristic distances, while currents and magnetic fields generate collective waves and instabilities. Describing each collision is less useful than evolving charge density, current, pressure, and fields together.

the rate of density change plus the divergence of mass flow equals zero

The continuity equation is local mass conservation: density rises where more mass flows in than flows out.

ρ
mass density · kilograms per cubic metre (kg/m³)
t
time · seconds (s)
v
flow-velocity field · metres per second (m/s)
∇·
divergence, measuring net outward flow from a small region
Reynolds number equals density times speed times length divided by dynamic viscosity

This dimensionless ratio compares inertial effects with viscous effects in a flow.

Re
Reynolds number
ρ
fluid mass density · kilograms per cubic metre (kg/m³)
v
characteristic flow speed · metres per second (m/s)
L
characteristic length · metres (m)
η
dynamic viscosity · pascal-seconds (Pa·s)
Helmholtz free energy equals internal energy minus temperature times entropy

At fixed temperature and volume, equilibrium favors the accessible state with lower Helmholtz free energy.

Fₕ
Helmholtz free energy · joules (J)
U
internal energy · joules (J)
T
absolute temperature · kelvins (K)
S
entropy · joules per kelvin (J/K)
  • Continuum fields are coarse-grained: they are defined over regions large compared with molecular spacing but small compared with the object being studied.
  • Universality explains why different materials can share the same critical exponents near a continuous phase transition.
  • Turbulence is not a failure of determinism; it is nonlinear, multiscale dynamics with strong sensitivity and energy transfer across scales.
  • A plasma must be treated collectively when electromagnetic interactions act over scales larger than individual collisions.
Pause and predictDoes one air molecule carry a tiny amount of pressure that the gas merely adds up?

No. Pressure describes collective momentum transfer across an area. One molecule can strike a wall and transfer momentum, but stable pressure is a statistical property of the crowd and its interactions.

Carry this forwardCarry this forward: a higher-level pattern can be real, measurable, and predictive even when it is not fundamental. The thermodynamic arrow is statistical, not a hidden universal clock; relativity will revise how observers measure elapsed time while leaving local physical processes and their entropy accounting intact.

Continue to Relativity
05

What changes when every observer measures the same speed of light?

Space and time become one geometry—and gravity becomes part of it.

Thermodynamics gave physical processes a statistical arrow without providing one master clock for the universe. Relativity begins with actual clocks, rulers, and a stubborn fact: light in vacuum has the same measured speed for every inertial observer. Following that fact carefully changes what we mean by simultaneous, how much time lies between two events, and finally what gravity is.

The glass at this scaleA clock beside the glass measures its own proper time. Earth, table, and water also curve spacetime by a tiny amount while Earth's geometry guides their shared fall.

Clocks, light, and motion

A moving clock follows a different path through spacetime.

What happens if a clock is made from one pulse of light bouncing between two mirrors?

Beside the clock, the pulse travels straight up and down. Watch the same clock glide past in a spaceship and the pulse traces a longer diagonal route between the moving mirrors. If both observers still measure the pulse moving at the same speed, they cannot agree on the elapsed time.

The first principle is modest: an experiment performed in a sealed laboratory moving at constant velocity cannot reveal a special state of absolute rest. The laws of physics take the same form in every inertial frame.

The second principle is the surprising one: every inertial observer measures the same vacuum speed of light, c. Speeds therefore cannot combine by ordinary addition when light is involved. Space and time must adjust together so that the same light ray still has speed c.

The adjustment is physical, not an optical illusion. Relative to a frame in which a clock moves, that clock accumulates less time between two chosen events. Relative to the clock itself, it ticks normally. Each inertial observer can describe the other's moving clock as slower because the observers also disagree about which distant events are simultaneous.

Lengths parallel to the motion and judgments of simultaneity change for the same reason. Space contraction, time dilation, and relativity of simultaneity are not three unrelated tricks; they are different projections of one spacetime geometry.

Energy and momentum also form one relativistic structure. Even an object at rest has rest energy E₀ = mc². Motion adds energy and momentum while preserving E² = (pc)² + (mc²)². This is an accounting rule, not a claim that an object's mass grows with speed; mass is the invariant rest property of the system.

When two clocks leave and later reunite, they can compare their accumulated proper times directly. If their routes through spacetime differ—because one turns around or changes inertial frames—the totals can differ. There is no frame-independent master clock whose reading both were failing to follow.

The turn

Relativity preserves something deeper than separate distances and durations: the spacetime interval. Observers divide the interval differently into space and time, but agree on its invariant value.

0.60 c

Moving-frame tick: 1.25× as long (γ = 1.25)

  • Clock at rest
  • Clock moving past
The same pair of light-bounce events has different space and time components in different inertial frames, while light still travels at c.
Make it preciseProper time is the time carried by one worldline

An event is a place-and-time. An inertial frame assigns coordinates to events, while the spacetime interval provides the invariant relation among those coordinates.

For motion along one spatial direction, the elapsed proper time Δτ is the reading of a clock present at both events. A frame in which that clock moves assigns a coordinate interval Δt and a displacement Δx. The two descriptions are connected by the invariant interval.

The Lorentz factor γ becomes noticeably larger than one only when v is a substantial fraction of c. At everyday speeds it differs from one by so little that Newtonian time is an excellent approximation.

The reciprocal time-dilation statements made by two separated inertial observers are consistent because simultaneity at a distance is frame-dependent. A reunion comparison is different: it compares proper time along complete worldlines that meet at common events.

Rest energy belongs to a system even in the frame where its total momentum is zero. Adding internal energy—by heating a sealed object, for example—adds a tiny amount to the system's mass. For a moving system, total energy and momentum change with frame, but their energy–momentum relation gives the same invariant mass in every inertial frame.

Gamma equals one divided by the square root of one minus speed squared divided by light speed squared.

The Lorentz factor relates measurements made in inertial frames moving at relative speed v.

γ
Lorentz factor · dimensionless
v
relative speed between the inertial frames · m s⁻¹
c
speed of light in vacuum · m s⁻¹
Coordinate time equals gamma times proper time.

A frame in which the clock moves assigns a longer time interval than the proper time accumulated by that clock between the same two events.

Δt
coordinate-time interval in the frame where the clock moves · s
Δτ
proper-time interval recorded by the clock · s
γ
Lorentz factor · dimensionless
Light speed squared times proper time squared equals light speed squared times coordinate time squared minus displacement squared.

For timelike-separated events in one spatial dimension, every inertial observer agrees on this interval even though Δt and Δx differ by frame.

Δτ
proper-time interval · s
Δt
coordinate-time interval · s
Δx
spatial separation in the chosen frame · m
c
speed of light in vacuum · m s⁻¹
rest energy equals invariant mass times the speed of light squared

Mass is one form of a system's energy accounting: a system at rest still carries energy, and changing its internal energy changes its mass by ΔE/c².

E₀
energy in the system's zero-momentum frame · J
m
invariant mass of the system · kg
c
speed of light in vacuum · m s⁻¹
energy squared equals the square of momentum times the speed of light, plus the square of mass times the speed of light squared

Energy and momentum vary with reference frame, while this combination preserves the system's invariant mass.

E
total relativistic energy · J
p
magnitude of relativistic momentum · kg m s⁻¹
m
invariant mass · kg
c
speed of light in vacuum · m s⁻¹
Pause and predictEarth says a passing ship's clock runs slow, while the coasting ship says Earth's moving clocks run slow. Is one description false?

No. During uniform relative motion the descriptions are reciprocal, and the frames disagree about distant simultaneity. A direct age comparison requires the clocks to meet again; then the proper time along each complete worldline determines the result.

Gravity and geometry

Free fall is the straightest possible motion through curved spacetime.

Why would you feel weightless inside a falling elevator even while gravity is acting?

Standing on the ground, the floor pushes upward and you feel weight. In a freely falling cabin, you and the cabin accelerate together, so the floor no longer has to support you. For a brief moment in a small enough laboratory, freely falling objects behave as if gravity has disappeared.

Einstein elevated this observation into the equivalence principle. In a sufficiently small region, the effects of a uniform gravitational field can be locally indistinguishable from the effects of acceleration. This is a local statement, not a claim that gravity can be erased everywhere.

A larger falling laboratory reveals the limit. Two dropped objects can move slightly toward or away from one another because the gravitational field varies from place to place. These tidal effects cannot be transformed away across the whole region; they are signs of spacetime curvature.

General relativity builds a three-step chain. First, clocks and rulers reveal the geometry—the real relationships among distances and durations. Second, matter, light, pressure, and flowing momentum change that geometry. Third, the changed geometry guides light and free-falling bodies along the straightest paths available. Physicists encode the measuring rule in a metric and the sources in a stress–energy ledger; the precision layer opens those names carefully.

Newtonian gravity remains an excellent approximation when fields are weak and speeds are slow. General relativity becomes essential for precise clock comparisons, compact stars, black holes, the propagation of gravitational waves, and the history of the expanding universe.

Curvature can change and travel. Accelerating, asymmetric masses can launch gravitational waves: propagating distortions in spacetime geometry. They do not travel through a material ether; they are changes in the gravitational field itself.

The turn

Gravity is not simply an invisible pull added to an otherwise fixed arena. The arena—its distances, durations, and causal structure—is part of the physical system.

  • Neighboring free-fall paths
  • Small falling laboratory
  • Changing separation
Inside a small falling lab, both objects feel weightless. Across a larger interval, their changing separation is the tidal signature of curvature.
Make it preciseA rule for clocks and rulers becomes the gravitational field

The metric is a table of numbers at each event that converts coordinate differences into physical distances, durations, and causal directions. General relativity lets that measuring rule respond to the contents of spacetime rather than prescribing it in advance.

The source side of Einstein's equation is a local ledger containing energy density, momentum flow, pressure, and stress, bundled into the stress–energy tensor. The geometry side records several kinds of spacetime curvature. The equation couples them; it is not a simple instruction that mass dents a rubber sheet.

In free fall, an ideal test body follows a geodesic—the straightest available path in the metric's geometry. It can have zero felt, or proper, acceleration even while its coordinates accelerate relative to the ground. A person standing still on Earth feels acceleration because the ground continually pushes them away from a free-fall path.

The equivalence principle controls the local picture. Curvature is revealed by comparing neighboring free-fall paths over a finite region. This distinction separates removable coordinate effects from tidal effects with invariant physical consequences.

The cosmological constant Λ is allowed by the geometric framework. Whether observed cosmic acceleration is exactly a constant vacuum term or evidence of something more remains an empirical question.

The Einstein curvature tensor plus lambda times the metric equals eight pi G over c to the fourth times the stress-energy tensor.

Spacetime curvature on the left is related to matter, radiation, momentum flow, pressure, and stress on the right.

Gμν
Einstein tensor describing spacetime curvature · m⁻²
gμν
spacetime metric tensor
Λ
cosmological constant · m⁻²
Tμν
stress-energy tensor · J m⁻³ for energy-density components
G
Newtonian gravitational constant · m³ kg⁻¹ s⁻²
c
speed of light in vacuum · m s⁻¹
  • Weak field and slow motion: Newtonian gravity reappears as an approximation.
  • Small freely falling laboratory: gravity can be removed locally to first order.
  • Finite region: tidal relative acceleration reveals curvature.
  • Strong or dynamical field: black holes, gravitational waves, and cosmology require the full theory.
Pause and predictDoes the equivalence principle say that acceleration and gravity are identical everywhere?

No. It says their effects can be locally indistinguishable in a sufficiently small laboratory. Across a finite region, tidal differences in free fall reveal spacetime curvature and distinguish a genuine gravitational field from uniform acceleration in flat spacetime.

Carry this forwardRelativity makes the stage of physics dynamical. Quantum theory changes the rules for the actors themselves: what a physical state is, how alternatives combine, and why matter can be stable.

Continue to Quantum
06

What replaces a world of objects carrying definite classical properties?

Possibilities interfere, questions matter, and stable matter emerges from allowed states.

Quantum theory earns its strangeness one experiment at a time. Begin with alternatives that interfere, then learn what a quantum state predicts, why uncertainty is structural rather than sloppy, and how the same rules build atoms, chemistry, and modern materials.

The glass at this scaleThe glass is solid and transparent because electrons occupy constrained quantum states; the same rules decide which light frequencies pass and which are absorbed.

The experiment that changes the rules

Quantum alternatives combine before probabilities appear.

What pattern appears when particles pass through two narrow slits one at a time?

Each arrival is a single localized dot. Yet after many arrivals, bright and dark bands grow across the screen—the pattern made by overlapping waves. Close either slit and the bands disappear. The rule for each dot somehow depends on both available alternatives.

Classical probability adds chances for exclusive alternatives. If a hidden marble went through slit A or slit B, we would add the probability from A to the probability from B. That predicts two broad piles, not alternating bright and dark bands.

Quantum theory assigns a probability amplitude to each alternative. Amplitudes carry phase as well as size. We add the amplitudes first and only then square the magnitude of the total to obtain a probability.

Where amplitudes reinforce, detections become more likely. Where equal amplitudes arrive with opposite phase, they cancel and detections become unlikely. A probability cannot cancel another probability; an amplitude can.

The quantum object is not merely a classical particle secretly taking one known path, nor simply a classical wave spreading divisible energy. It produces localized detections while its alternatives combine according to a wave-like amplitude rule.

If an apparatus records which slit is taken, the path becomes correlated with a distinguishable record. The two alternatives can no longer interfere in the same way. No conscious observer is required; the relevant change is a physical interaction that makes the alternatives distinguishable.

The turn

Quantum theory does not begin by making outcomes vague. It gives an exact rule for combining possible ways an outcome can happen—and that rule contains phase information ordinary probability lacks.

No path detector: alternatives can interfere.

  • Alternative paths
  • Detection screen
  • Interference pattern
  • No-fringe distribution
Compare the two experimental arrangements: without a path record amplitudes interfere; with a path record the interference pattern disappears.
Make it preciseThe Born rule converts amplitudes into probabilities

An amplitude can be represented by a complex number. Its phase determines how it combines with other amplitudes, while its squared magnitude gives an outcome probability.

For two coherent alternatives, the probability contains not only the separate contributions |ψA|² and |ψB|² but also an interference term. That cross term can be positive or negative depending on relative phase.

Which-path information does not need to be read by a person. If the paths become entangled with orthogonal apparatus or environmental records, the cross term becomes inaccessible in measurements that ignore those records.

Between measurements, the Schrödinger equation evolves amplitudes continuously. The Hamiltonian Ĥ is the rule representing the system's energy and interactions, so specifying it and an initial state determines the state's later evolution. Experiments still record individual outcomes; the relation between continuous amplitude evolution and definite records motivates the next section.

Probability equals the squared magnitude of amplitude psi A plus amplitude psi B.

When alternatives remain coherent and lead to the same outcome, their amplitudes add before the Born rule produces a probability.

P
probability of the specified detection outcome · dimensionless
ψA
probability amplitude for the alternative through A
ψB
probability amplitude for the alternative through B
The total probability equals the two separate squared amplitudes plus twice the real part of psi A conjugate times psi B.

The final term is the interference contribution. It depends on relative phase and has no counterpart when ordinary probabilities are merely added.

ψA*
complex conjugate of the amplitude for A
ψB
probability amplitude for B
Re
real part of a complex quantity
i h bar times the time rate of change of psi equals the Hamiltonian acting on psi

The time-dependent Schrödinger equation tells a nonrelativistic quantum state how to evolve between measurements.

i
imaginary unit, whose square is minus one
reduced Planck constant · J s
ψ
quantum state or wavefunction
t
time · s
Ĥ
Hamiltonian operator representing energy and interactions
Pause and predictWhy can two open slits produce fewer detections at some places than either slit would produce alone?

The alternatives contribute amplitudes, not finished probabilities. At some positions their phases oppose, so the amplitudes cancel before the squared magnitude is taken. Ordinary positive probabilities could not produce that cancellation.

States, questions, and correlations

A quantum state predicts answers; it is not a hidden classical property list.

Why does a magnet split a beam of atoms into two streams instead of a continuous fan?

Send neutral silver atoms through an uneven magnetic field and the beam separates into two, not a continuous fan. Silver's outer electron gives each atom an effective spin-one-half magnetic moment. Rotate the magnet and the same prepared beam can split into a new pair of proportions: the result depends on both the preparation and the axis tested.

Keep only one output from a first Stern–Gerlach magnet and send those atoms into a second aligned magnet: they all take the matching output. Rotate the second magnet and two outputs return with repeatable proportions. Quantum theory does not treat this as uncovering three simultaneously sharp spin components; each orientation poses a different physical question.

A quantum state is a compact prediction recipe. For a pure preparation, it supplies amplitudes for the mutually exclusive answers available to each measurement arrangement. Physicists call that set of possible answers a basis. The terminology comes after the experiment: state means the preparation carried forward; basis means the question the apparatus is set up to ask.

Spin is intrinsic angular momentum. It transforms under rotations, contributes to magnetic behavior, and is quantized, but an electron is not a tiny classical ball literally spinning at a surface speed. For spin one-half, a measurement along any chosen axis has two possible outcomes.

Some questions cannot be made simultaneously sharp in one state. Narrowing a particle's position distribution necessarily broadens its momentum distribution. In the mathematics, the operations for position and momentum do not commute: applying them in opposite orders is not equivalent. The uncertainty relation is therefore structural, not merely a warning about shaky hands or a clumsy microscope.

Two quantum objects can also need one joint prediction recipe rather than a separate state for each part. This is entanglement. It can produce correlations that rule out broad classes of prewritten local answers, but it cannot be controlled to send a message faster than light. The precise Bell-test evidence and the role of environmental decoherence belong in the optional layer below.

The turn

Quantum properties are not all simultaneously waiting with definite classical values. A state supplies a structured family of possible answers, and relationships within a joint state can be more definite than the separate parts.

  • State direction
  • Possible outcomes
  • State space
For a two-outcome system, the sphere is a useful map of preparation and measurement axis—not a tiny arrow literally hidden inside the particle.
Make it preciseIncompatibility and entanglement are mathematical structure, not loose mystery

Quantum states are vectors in a complex Hilbert space. Observables are represented by operators, and the Born rule assigns probabilities to their possible outcomes.

The position and momentum operators do not commute. Their commutator fixes a lower bound on the product of standard deviations for any state. Better instruments can reduce additional experimental noise, but they cannot prepare a state that violates this bound.

For spin one-half, changing the measurement axis changes the basis used to express the same state. A state sharp along one axis is generally a superposition of the two outcomes along another axis.

An entangled two-particle state cannot be rewritten as one state for particle A multiplied by one state for particle B. Bell inequalities turn that structural fact into an experimental distinction from a broad class of local hidden-variable models.

Decoherence follows ordinary unitary quantum dynamics applied to a larger system that includes the environment. It explains why interference between macroscopically distinct records becomes extraordinarily hard to observe, while leaving interpretive questions about definite outcomes open.

Position uncertainty times momentum uncertainty is at least h bar divided by two.

No quantum state can have arbitrarily narrow position and momentum distributions at the same time.

Δx
standard deviation of position · m
Δp
standard deviation of momentum · kg m s⁻¹
reduced Planck constant · J s
The singlet state equals spin up down minus spin down up, divided by the square root of two.

This entangled spin state has a definite joint relation, cannot be factored into independent one-particle states, and produces anticorrelated outcomes when both spins are measured along the same axis.

|Ψ⁻⟩
two-particle spin-singlet state
|↑↓⟩
first spin up and second spin down in the chosen basis
|↓↑⟩
first spin down and second spin up in the chosen basis
  • State: the object that generates amplitudes for possible outcomes.
  • Basis: the mutually exclusive answers defined by one measurement arrangement.
  • Uncertainty: a constraint on the distributions available to one state, not only on apparatus quality.
  • Decoherence: environmental entanglement that suppresses accessible interference, not a consciousness trigger.
Pause and predictCould perfect instruments make both a particle's position and momentum exactly sharp?

No. Perfect instruments could remove extra measurement error, but position and momentum are incompatible observables. Every quantum state obeys ΔxΔp ≥ ℏ/2. The limit belongs to the state's structure, not merely to experimental clumsiness.

Atoms, bonds, and materials

Ordinary matter is stable because quantum states are constrained.

Why does a table resist your hand, copper carry current, and glass let visible light through?

The objects look continuous, but their behavior comes from electrons and nuclei occupying collective quantum states. Change which states are allowed or filled and the same basic particles can make an insulator, a metal, a magnet, a semiconductor, or a transparent solid.

A classical electron orbiting a nucleus would radiate energy and spiral inward. In quantum mechanics, an atom has stationary states with allowed energies. Its lowest-energy bound state has nowhere lower to fall while remaining the same system.

Electrons have spin one-half and obey the Pauli exclusion principle: identical electrons cannot occupy the same complete one-particle quantum state. As electrons fill available states, atoms acquire shells, recurring chemical patterns, and characteristic spectra.

Quantum particles divide into two broad statistical families. Identical fermions, including electrons and quarks, obey exclusion. Bosons, including photons, can share one state in great numbers. This difference helps fermions build the layered structure of matter while bosons can form highly occupied collective states such as laser light and bosonic atomic condensates.

A chemical bond is a shared quantum arrangement of electrons and nuclei. Bonding is not a tiny rigid stick. It reflects how the combined state changes the system's energy and how electron probability is distributed across the atoms.

A quantum amplitude can also extend into a region that a classical particle lacks enough energy to enter. It usually decays across that barrier but can remain nonzero beyond it, giving a chance of detection on the other side. This tunneling is not a hidden kick over the wall; it follows from the wave-like state and helps enable alpha decay, electronic devices, and fusion in stars.

In a solid, enormous numbers of atomic states combine into bands of allowed energy separated by gaps. Partly filled bands let electrons respond readily to an electric field, producing metallic conduction. A large gap can make a material insulating; a carefully controlled smaller gap makes semiconductor devices possible.

Macroscopic behavior is therefore both quantum and emergent. At low temperatures, many particles can lock into one coherent collective state. Superfluids then flow without ordinary viscosity; in many superconductors, paired electrons carry persistent current without electrical resistance while the material expels magnetic flux. These are the quantum phases previewed in the chapter on emergent matter.

The turn

Quantum mechanics is not confined to rare laboratory paradoxes. The solidity, color, conductivity, chemistry, and technology of the ordinary world are organized consequences of allowed many-particle states.

  • Atomic lattice
  • Collective quantum pattern
  • Coherent region
Quantum constraints scale upward: atomic states become molecular bonds and solid-state bands whose filling helps determine material behavior.
Make it preciseAn energy eigenstate is an allowed pattern, not a classical track

The Hamiltonian operator represents the system's energy and dynamics. Solving its eigenvalue problem gives stationary states and their allowed energies.

For an isolated atom, the Hamiltonian includes electron kinetic energy and electromagnetic interactions with the nucleus and other electrons. Exact solutions are rare beyond hydrogen, so atomic and material physics use controlled approximations and numerical methods.

A stationary energy eigenstate changes only by an overall phase under time evolution, so its probability distribution does not collapse inward like a radiating classical orbit. Transitions occur when the atom interacts with radiation or another system and energy is exchanged.

Particle statistics constrain many-body states. Exchanging two identical fermions reverses the sign of their joint amplitude, which makes the amplitude vanish if they try to occupy the same one-particle state. Exchanging identical bosons leaves the amplitude unchanged, permitting many bosons to share a mode.

Tunneling appears when a solution to the Schrödinger equation extends through a classically forbidden energy barrier. The amplitude decays exponentially inside a simple barrier, so wider or taller barriers transmit less, but it need not become exactly zero. In stellar cores, tunneling lets nuclei approach closely enough for a nuclear reaction to become possible; what happens next depends on nuclear structure and interactions. In the Sun's first proton–proton step, one proton must convert into a neutron through the weak interaction because two protons alone do not form a stable diproton. That rare weak conversion helps set the Sun's slow burn rate.

In crystals, translational symmetry organizes electron states into energy bands. Interactions, disorder, dimensionality, and lattice motion can substantially alter the simple band picture, which is why real condensed matter contains both powerful general principles and material-specific surprises.

The classical world is not obtained by declaring quantum effects gone. It emerges when enormous systems occupy robust collective states, when phases average or decohere, and when coarse variables such as rigidity, temperature, and conductivity become stable descriptions. Superfluidity and superconductivity show the complementary possibility: coherence can survive to macroscopic scales and make quantum behavior directly visible.

The Hamiltonian acting on state psi n equals energy E n times state psi n.

An energy eigenstate is a state whose form is preserved by an energy measurement and whose allowed energy is En.

Ĥ
Hamiltonian energy operator
ψn
nth energy eigenstate
En
allowed energy associated with that state · J or eV
Photon energy equals Planck's constant times frequency, equal to the initial energy minus the final energy.

A downward transition between allowed energies can emit a photon whose frequency records the energy difference.

photon energy · J or eV
h
Planck constant · J s
ν
photon frequency · Hz
Ei
initial allowed energy · J or eV
Ef
final allowed energy · J or eV
  • Atoms: discrete bound states and shell structure.
  • Molecules: shared electronic states and quantized vibration and rotation.
  • Solids: energy bands, gaps, collective modes, and phases.
  • Devices: controlled state populations, transitions, and transport.
Pause and predictWhy does an electron in an atom not behave like a tiny planet that radiates and crashes into the nucleus?

An atomic electron occupies a quantum state, not a classical orbit. The ground state is the lowest allowed bound state, and a stationary energy eigenstate does not continuously radiate away orbital energy. Light is absorbed or emitted in transitions between allowed states.

Carry this forwardQuantum states explain the stability and behavior of matter. The next layer asks how relativity and quantum principles combine into quantum fields, particles, nuclei, and the Standard Model.

Continue to Particles & stars
07

What is matter made of, and how does it light the sky?

From quantum fields to starlight

The same small set of particles and interactions builds copper, cells, planets, and stars. The variety comes less from a huge parts list than from the many stable arrangements the parts can make.

The glass at this scaleIts electrons are excitations of one electron field, its nuclei store strong-interaction energy, and many of its heavier atoms were forged in earlier stars.

The parts list

Particles are ripples that can be counted

If every electron is identical, where are the electron factories?

There is no factory stamping out copies. An electron is one unit of excitation in an electron field that exists throughout space; identical units of the same field are identical by construction.

Quantum field theory combines quantum rules with special relativity. Fields are the basic objects; what experiments call particles are countable excitations that transfer energy, momentum, and other conserved quantities. A detector records localized events, while the field theory predicts the probabilities connecting a preparation with those events.

The Standard Model is the tested parts-and-forces map for known elementary particles. It includes the electromagnetic, strong, and weak interactions. It does not include gravity, and it does not identify dark matter or dark energy. Start with that map; the mathematical symmetry that organizes it belongs in the precision layer.

Matter fields come in quarks and leptons. Up and down quarks build protons and neutrons; electrons help build atoms; neutrinos interact only weakly. Matter fields include corresponding antiparticle possibilities with the same mass and opposite additive charges. For electrically neutral neutrinos, whether the neutrino and antineutrino are fundamentally distinct remains unknown. A particle–antiparticle pair can annihilate into other field excitations, but the complete event must still balance every conserved quantity.

Quantum electrodynamics, or QED, describes electrically charged fields interacting through the electromagnetic field, whose quanta are photons. Quantum chromodynamics, or QCD, describes quarks carrying color charge and interacting through eight gluon fields. Gluons also carry color and interact with one another. At ordinary energies, confinement prevents isolated quarks and gluons from appearing; they are found in color-neutral composites such as protons, neutrons, and other hadrons.

The weak interaction can change one kind, or flavor, of quark or lepton into another. It drives beta decay and lets neutrinos interact through W and Z fields. Electromagnetism and the weak interaction are two low-energy faces of one electroweak gauge theory. The Higgs field's nonzero value throughout empty space leaves the photon massless while allowing W and Z bosons to be massive, which helps make the weak interaction short-ranged.

Elementary fermions such as electrons and quarks acquire rest mass through their couplings to the Higgs field; stronger couplings mean larger masses. This is not where most of the mass of the glass, a person, or a proton comes from. Most ordinary mass is energy in the moving quark and gluon fields confined inside protons and neutrons.

Neutrinos reveal a tested crack in the minimal model. A neutrino produced with electron, muon, or tau flavor is a quantum combination of different mass states. Those components accumulate different phases as they travel, so the detected flavor can change. Neutrino oscillation proves that at least two neutrinos have nonzero mass, while the origin and full pattern of those masses remain open.

The turn

Nature's alphabet is short. Most complexity is grammar: symmetry, interaction, and arrangement decide what the same few fields can become.

  • Field modes
  • Excited mode
  • Counted quantum

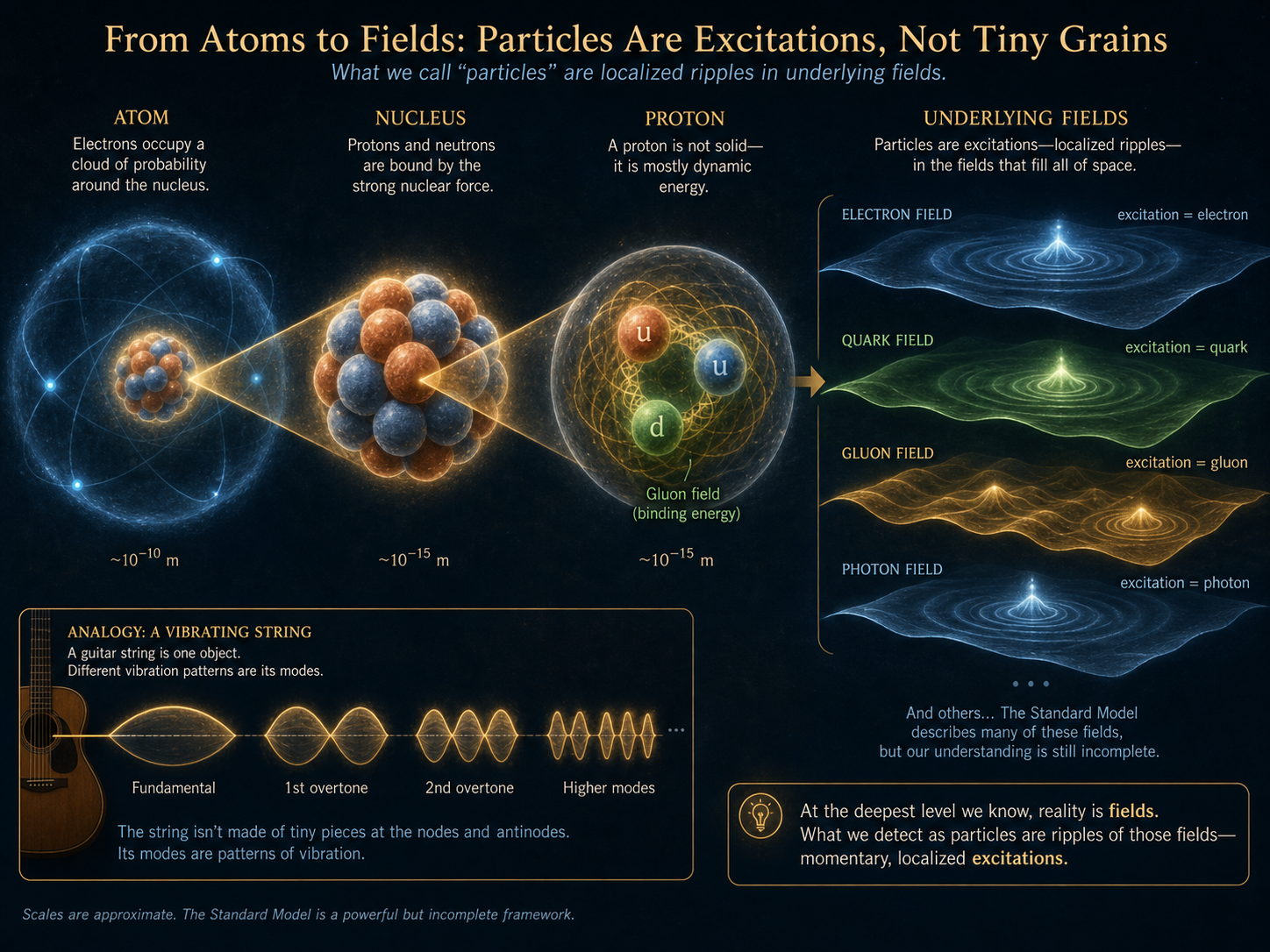

In quantum field theory, a particle is a countable excitation of an underlying field; the Standard Model specifies which fields and interactions exist.
Make it preciseGauge fields, masses, and mixing

The Standard Model is not merely a list of particles. It is a quantum field theory whose gauge symmetries determine the interaction structure and whose field couplings determine measurable masses, charges, and transition probabilities.

The gauge group SU(3)C × SU(2)L × U(1)Y is compact notation for three linked freedoms of description. SU(3)C organizes QCD color. SU(2)L × U(1)Y organizes the electroweak theory. After electroweak symmetry breaking, mixtures of the original gauge fields appear as the photon and the massive W and Z bosons.

Gauge invariance constrains allowed couplings, but experiments still determine parameters such as interaction strengths, fermion masses, and mixing angles. Those measured inputs are one reason the Standard Model is extraordinarily predictive without yet explaining every numerical pattern inside itself.

Relativity supplies one energy–momentum relation for massive and massless excitations. Quantum field interactions may create or destroy particle excitations, but a complete process conserves total energy and momentum along with the charges respected by that interaction.

Fermion mass is proportional to a dimensionless Yukawa coupling to the Higgs field. The equation records the mechanism but does not explain why the electron, top quark, and other fermions have such different coupling values. Composite masses require solving the interacting field energy as well.

Neutrino flavor states and mass states are different bases for the same quantum system. The unitary PMNS mixing matrix connects them. Oscillation probabilities depend on mixing angles, mass-squared differences, travel distance, energy, and—in matter—the different interactions of electron neutrinos.

Physicists draw Feynman diagrams to organize terms in a probability-amplitude calculation. External lines label prepared or detected particles; internal lines are mathematical ingredients, not photographs of tiny virtual objects taking hidden routes.

Energy squared equals momentum squared times c squared, plus mass squared times c to the fourth.

The relativistic relation shared by particles; for a massless quantum such as a photon, E = pc.

E
total energy · joule
p
momentum · kilogram metre per second
m
rest mass · kilogram
c
speed of light · metre per second
A fermion's mass equals its Higgs coupling times the Higgs vacuum value divided by the square root of two.

In natural units with c = 1, each charged elementary fermion mass parameter is set by its Yukawa coupling to the nonzero Higgs field value in the vacuum.

m(f)
rest mass parameter of fermion f in natural units · electronvolt
y(f)
dimensionless Yukawa coupling of fermion f
v
Higgs vacuum expectation value in natural units · electronvolt
A neutrino flavor state is a weighted sum of neutrino mass states.

Production and detection select flavor states, while propagation gives different phases to the mass states, allowing oscillation between flavors.

|ν(α)⟩
neutrino flavor state, with alpha equal to electron, muon, or tau
|νᵢ⟩
neutrino state with definite mass mᵢ
U(αi)
element of the PMNS neutrino-mixing matrix
  • Matter: six quark flavors and six leptons arranged in three generations, with corresponding antiparticles.
  • QED: photon field coupled to electric charge.
  • QCD: eight gluon fields coupled to color charge, with confinement at ordinary energies.
  • Weak interaction: W and Z fields, flavor change, beta processes, and neutrino scattering.
  • Higgs sector: electroweak symmetry breaking and elementary-particle mass couplings—not the source of most composite-hadron mass.
Pause and predictDid the Higgs field create most of the mass of the glass on the table?

No. Higgs couplings provide elementary quark and electron masses, but most of the glass's mass lies in protons and neutrons. Most of each proton or neutron's mass is energy in its confined quark and gluon fields.

The compact core

A nucleus is stored energy with a headcount

Why can rearranging a speck of matter release the energy of a city?

The pieces of a nucleus have different total energy when arranged differently. A tiny difference in mass records that energy difference.

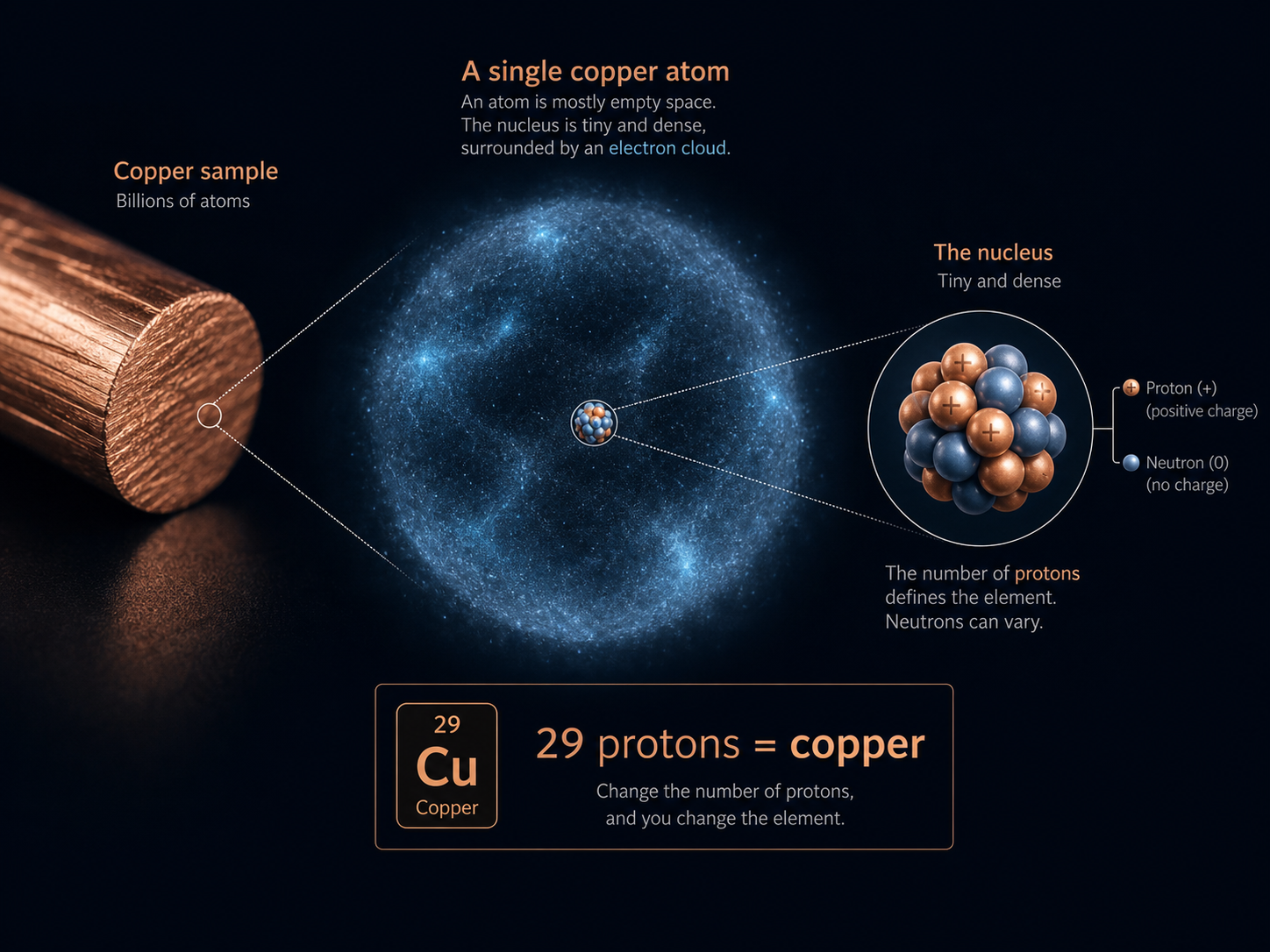

A nucleus contains protons and neutrons, together called nucleons. Electric repulsion pushes every proton away from the others. A short-range residual effect of QCD binds nearby nucleons strongly enough to overcome that repulsion in stable nuclei, while quantum rules allow only certain nuclear states.

A bound nucleus has less mass-energy than its separated parts. The difference is the binding energy that would have to be supplied to pull it apart. Plot the average binding energy per nucleon and the curve rises steeply for light nuclei, peaks around the iron–nickel region, then declines slowly for very heavy nuclei.

That curve explains an apparent puzzle. Fusion joins light nuclei and fission splits very heavy nuclei, yet both can release energy. In each case, the products lie closer to the tightly bound middle of the curve. Their smaller total rest mass appears as kinetic energy and radiation while the complete energy ledger remains balanced.

Alpha decay emits a tightly bound helium-4 nucleus—two protons and two neutrons. The alpha cluster can escape through a barrier that classical motion would forbid because its quantum state has a small amplitude beyond the barrier. The parent loses four nucleons and two units of electric charge.

Beta decay is governed by the weak interaction. In beta-minus decay, a neutron changes into a proton while an electron and an electron antineutrino are emitted. Related beta-plus and electron-capture processes change a proton into a neutron. The neutrino or antineutrino is essential to the event's energy, momentum, spin, and lepton-number accounting.

Gamma decay changes neither proton nor neutron count. An excited nucleus drops to a lower-energy nuclear state and emits a high-energy photon. Alpha, beta, and gamma therefore describe different physical changes, not merely three strengths of the same radiation.

The exact decay time of one unstable nucleus is not predicted, but a large population follows a precise statistical half-life. That combination—unpredictable individual event, predictable ensemble—is a recurring quantum signature.

The turn

Mass is one way a system's total energy appears. Change the internal arrangement, and the mass of the whole changes with it.

  • Original nucleus
  • Products
  • Released energy
This schematic shows fission. Fusion moves toward tighter binding from the opposite, light-nucleus side of the binding-energy curve.
Make it preciseThe binding curve, reaction energy, and decay clocks

Nuclear bookkeeping tracks proton number Z, total nucleon number A, charge, energy, momentum, and the quantum numbers relevant to each interaction.

For a nucleus with Z protons and A − Z neutrons, binding energy compares the mass of those free constituents with the measured nuclear mass. Dividing by A produces the binding energy per nucleon used to compare differently sized nuclei.

The curve reflects competing effects: short-range nuclear attraction, proton–proton electric repulsion, quantum shell structure, and the imbalance between proton and neutron counts. It is smooth enough to explain the broad fusion and fission trend but detailed enough that individual isotopes require measured masses and nuclear models.

A reaction's Q value is the initial total rest energy minus the final total rest energy. Positive Q means the difference can appear as kinetic energy or radiation. Momentum conservation still constrains how that released energy is shared.

A constant decay probability per unit time produces an exponential population curve. The half-life is ln 2 divided by the decay constant. These equations predict ensemble statistics, not the exact instant for one nucleus.

Binding energy per nucleon is the free constituent mass minus nuclear mass, times c squared, divided by the nucleon count.

This average makes the binding of light, middle-sized, and heavy nuclei comparable on one curve.

B
total nuclear binding energy · joule or electronvolt
A
total number of protons and neutrons
Z
number of protons
mₚ
free proton mass · kilogram
mₙ
free neutron mass · kilogram
m(nucleus)
mass of the bound nucleus · kilogram
c
speed of light · metre per second
Reaction energy equals initial rest mass minus final rest mass, times the speed of light squared.

A positive Q value is energy available to final kinetic motion or radiation, subject to every conservation law.

Q
reaction energy release · joule or electronvolt
Σm(initial)
sum of initial rest masses · kilogram
Σm(final)
sum of final rest masses · kilogram
c
speed of light · metre per second
The number remaining falls exponentially with decay rate lambda.

The expected number of undecayed nuclei after time t.

N(t)
nuclei remaining at time t
N₀
starting number of nuclei
λ
decay constant · per second
t
elapsed time · second
Half-life equals the natural logarithm of two divided by the decay constant.

After each half-life, the expected undecayed population is halved.

half-life · second
λ
decay constant · per second
  • Alpha: ᴬZX → ᴬ⁻⁴Z₋₂Y + ⁴₂He.
  • Beta minus: n → p + e⁻ + ν̄ₑ inside the nuclear transition.
  • Gamma: X* → X + γ, with A and Z unchanged.
Pause and predictHow can both joining light nuclei and splitting heavy nuclei release energy?

Both reactions can move nuclei toward the more tightly bound iron–nickel region of the binding-energy curve. The products have less total rest mass than the starting nuclei, and that finite difference appears as motion or radiation while total energy remains conserved.

Gravity's long experiment

A star is a balance that manufactures change

Why does the Sun neither fly apart nor collapse today?

Gravity squeezes inward. Hot, pressurized matter pushes outward. The Sun is a dynamic truce between them, paid for by fusion in its core.

A cloud contracts under gravity and warms as gravitational energy becomes internal motion. A star forms when inward gravity is balanced by a pressure gradient: each deeper layer must support the weight above it. The balance is dynamic—matter moves, radiation flows, and the core slowly changes composition.

When the core becomes hot and dense enough, light nuclei can fuse. Electric repulsion creates a barrier, but a quantum state is not confined to one classical side of that barrier; it has a small tunnelling amplitude beyond it. Enormous numbers of collisions make rare successful approaches sufficient to power a star.

Fusion releases binding-energy differences and changes the star's composition. Energy moves outward by radiation, convection, and particles before escaping. A star's color and spectral lines reveal surface temperature, motion, and chemical fingerprints; neutrinos and stellar oscillations probe regions light cannot leave directly.

When a core exhausts one fuel, gravity contracts and heats it until another reaction can begin or no new fuel is accessible. Many Sun-like and intermediate-mass stars shed outer layers and leave carbon–oxygen white dwarfs; very low-mass or stripped stars can leave helium remnants, while the upper intermediate range can produce oxygen–neon remnants. Massive stars can build layered cores, undergo collapse and explosion, and manufacture or disperse many heavy elements.

A white dwarf is supported mainly by electron degeneracy pressure. The Pauli exclusion principle prevents identical electrons from all occupying the same low-momentum states, so squeezing them into a smaller volume forces a wider momentum spread. This pressure does not require the remnant to remain hot.

As white-dwarf mass rises, its electrons become increasingly relativistic and degeneracy support reaches a limiting mass—the Chandrasekhar scale, about 1.4 solar masses with some composition dependence. A core driven beyond electron support can collapse, combine electrons and protons into neutron-rich matter, and leave a neutron star if denser-matter pressure can halt the collapse.

Neutron stars are supported by quantum degeneracy together with strong interactions among dense nuclear matter. Their maximum stable mass depends on an equation of state not yet fully known. If a collapsing remnant exceeds that maximum and loses no sufficient mass or angular momentum, no known material pressure stops collapse before a black hole forms.

The turn

Looking far away is also looking back in time. The sky is an archive in which matter, gravity, quantum rules, and heat have been running experiments for billions of years.

  • Fusion core
  • Pressure outward
  • Gravity inward
A star persists because gravity, pressure, energy generation, and energy transport continually balance.
Make it preciseHydrostatic balance and the quantum limits of support

A stellar model combines local force balance with mass continuity, energy generation, energy transport, and an equation of state connecting pressure, density, temperature, and composition.

The pressure must rise inward because deeper layers support more mass above them. This is a local balance, not the claim that nothing moves inside a star.

Ordinary gas and radiation pressure depend strongly on temperature. Degeneracy pressure instead follows the filling of quantum momentum states. For nonrelativistic degenerate electrons it scales approximately as number density to the five-thirds power; in the ultrarelativistic limit the exponent becomes four-thirds.

That softer relativistic scaling produces the Chandrasekhar limit: adding mass no longer finds a stable white-dwarf radius. The approximate 1.4-solar-mass value assumes a cold, nonrotating object and depends modestly on chemical composition.

Neutron-star structure requires general relativity and an uncertain high-density equation of state. The maximum mass is therefore not one exact universal textbook number. A black hole forms when collapse carries matter inside a trapped region from which future-directed light cannot escape; the Schwarzschild radius supplies the nonrotating vacuum length scale for a given mass.

Pressure falls outward at a rate set by gravity, enclosed mass, and density.

Newtonian hydrostatic equilibrium inside a spherical star.

P
pressure · pascal
r
distance from the centre · metre
G
gravitational constant
M(r)
mass enclosed inside radius r · kilogram
ρ(r)
density at radius r · kilogram per cubic metre
Electron degeneracy pressure scales as electron density to the five-thirds power when nonrelativistic and to the four-thirds power when ultrarelativistic.

The change in exponent is why electron degeneracy cannot support a white dwarf above the Chandrasekhar mass scale.

P(deg)
electron degeneracy pressure · pascal
nₑ
electron number density · per cubic metre
The Chandrasekhar mass is approximately one point four times the mass of the Sun.

This is the characteristic upper mass for a cold, nonrotating electron-degenerate white dwarf; composition changes the precise value.

M(Ch)
Chandrasekhar limiting mass · kilogram or solar mass
M☉
mass of the Sun · kilogram
The Schwarzschild radius equals two G times mass divided by the speed of light squared.

For a nonrotating uncharged black hole, this radius marks the event horizon in exterior Schwarzschild spacetime.

rₛ
Schwarzschild radius · metre
G
gravitational constant · m³ kg⁻¹ s⁻²
M
black-hole mass · kilogram
c
speed of light · metre per second
Pause and predictWhy can a cold white dwarf resist gravity after fusion has stopped?

Electron degeneracy pressure comes from exclusion and the filling of quantum momentum states, not from thermal motion. Cooling removes ordinary thermal support but does not turn off degeneracy pressure. Above the Chandrasekhar mass scale, however, electron degeneracy cannot provide a stable white-dwarf configuration.

Carry this forwardKeep the idea of a field from earlier chapters: in modern particle physics, a particle is a countable excitation of a field, not a miniature hard bead.

Continue to Cosmos
08

How did one expanding universe become everything we see?

The universe as a physical history

Cosmology is not a creation myth with equations added. It is a reconstruction from light, motion, nuclear abundances, gravity, and the large-scale pattern of matter—with important blank spaces still marked honestly.

The glass at this scaleThe glass sits in an expanding universe, but local binding keeps it from expanding; its atoms are late products of a cosmic history whose dark effects remain only partly explained.

Gravity reveals an absence

We can map dark matter before we know what it is

How can something invisible leave a map?

Watch what gravity does. Stars orbit too quickly for visible matter alone, light bends around unseen mass, and cosmic structure grows as though an extra gravitating ingredient is present.

Dark matter is the name for a converging gravitational problem, not the established name of a discovered particle. Galaxy motions, gravitational lensing, colliding clusters, the cosmic microwave background, and structure formation all point toward more gravitating matter than ordinary atoms supply.

The simplest successful cosmological models treat most dark matter as cold: slow compared with light when cosmic structures begin growing, and weakly interacting except through gravity. That description tells us how it behaves at large scales, not what microscopic thing it is.

Candidates range from new elementary particles to ultralight fields and compact objects. Modified-gravity proposals ask whether the law, rather than the inventory, changes. Any solution must explain the whole evidence set, not only one galaxy curve.

The turn

A scientific name can mark a measured pattern before it names a substance. 'Dark matter' is a disciplined label on an open box.

  • Visible galaxy
  • Inferred halo
  • Bent light path
The visible galaxy is smaller than the halo inferred from motions and gravitational lensing; other observations test the same missing contribution.
Make it preciseThe orbit test

Circular speed gives a quick way to infer how much mass lies inside an orbit.

If nearly all mass were concentrated where a galaxy shines, orbital speeds should fall outside the bright region. Many remain roughly flat, implying that enclosed gravitating mass continues to rise.

Real inferences use noncircular motion, gas, stars, geometry, and relativity where needed. The simple equation is a foothold, not the full case.

Centripetal acceleration equals the gravitational pull from the enclosed mass.

A spherical approximation relating orbital speed to mass inside radius r.

v
orbital speed · metre per second
r
orbital radius · metre
G
gravitational constant
M(<r)
mass enclosed inside r · kilogram
Pause and predictWhy is one flat galaxy rotation curve not enough by itself?

Distance errors, ordinary matter, or altered dynamics might imitate one curve. The case becomes strong because lensing, colliding clusters, the microwave background, and structure growth point toward the same extra gravitational contribution across very different scales.

A history, not a location

The Big Bang happened everywhere

Where is the centre of the expanding universe?

In the standard model, expansion is not debris flying into pre-existing emptiness. Distances between unbound regions grow because the geometry changes; no observed place is the centre of that process.

Run cosmic expansion backward and the observable universe becomes hotter, denser, and smoother. This is what 'Big Bang' means in tested cosmology: an early hot phase and subsequent expansion, not a bomb at one point in space. Light arriving from an earlier, smaller universe is stretched with the expansion, producing cosmological redshift.

Three great clues interlock. Distant galaxies show systematic expansion. The cosmic microwave background is cooled afterglow from when neutral atoms first let light travel freely. Primordial deuterium and helium strongly agree with nuclear reactions in the first minutes; the predicted lithium abundance remains a notable unresolved mismatch. No one clue carries the whole history; their combined agreement and tensions are what make the model testable.

After the hot plasma cooled, nuclei formed, then neutral atoms released the microwave background. Tiny early variations grew under gravity into the cosmic web; dark matter deepened gravitational wells, ordinary gas made stars and galaxies, and stars enriched later matter. Because the universe has finite age and light finite speed, we see only an observable region. That horizon is not evidence for a physical edge, and the model does not by itself answer why there is a universe or what, if anything, preceded the early era it describes.

The microwave background also poses a puzzle: far-separated regions have almost the same temperature even though, in the simplest backward extrapolation of the later hot phase, they had too little time to exchange light. Space is also observed to be very close to flat on large scales. Inflation—an extremely early burst of accelerated expansion—is the leading mechanism that can address both clues and seed later structure. Its broad predictions fit observations, but no unique inflation model has been established.

To calculate this history, cosmologists use general relativity and a changing scale factor. In the standard flat ΛCDM fit, today's model budget is roughly 5% ordinary matter, 27% dark matter, and 68% dark energy. Those shares are inferred jointly from several datasets inside that model, not weighed as separate substances in a laboratory. The Friedmann balance, curvature, horizons, and model dependence are unpacked in the precision layer.

The turn

A telescope is a time machine with no reverse gear: farther light left earlier. Cosmology turns that unavoidable delay into a historical record.

1.00×

Gold galaxy chosen as the reference. It is not a center.

  • Chosen reference galaxy
  • Other galaxies
Change the scale and then change the reference galaxy. Every observer sees distant unbound galaxies recede; no galaxy is singled out as the center.
Make it preciseThe Friedmann balance, curvature, and horizons

On sufficiently large scales, the standard model approximates the universe as homogeneous and isotropic. A scale factor a(t) then describes changing distances between comoving locations, while the Friedmann equations connect that geometry with cosmic contents.

The Hubble parameter H(t) is the fractional growth rate of a(t), not a constant speed assigned forever. The first Friedmann equation shows how energy density, curvature, and Λ contribute. A second acceleration equation includes pressure explicitly and explains why radiation, matter, and vacuum-like energy affect the history differently.

The curvature parameter k distinguishes positive, zero, and negative spatial curvature in the idealized homogeneous geometry. In the convention used here, k carries the units needed when the scale factor is dimensionless. Comparing total effective density—including any vacuum-equivalent contribution represented by Λ—with the critical density gives an equivalent test: Ωtotal = 1 corresponds to spatial flatness. Curvature and topology are different; even a flat space can have more than one possible global topology.

Cosmological redshift compares scale factors at emission and observation. It is not merely an ordinary Doppler shift through fixed space, though the two agree in the nearby low-redshift limit. The full distance–redshift relation depends on the integrated expansion history.

Inflation addresses a causal puzzle in the simplest noninflationary extrapolation: widely separated microwave-background regions are remarkably similar even though their light cones would not overlap during the later hot phase. Sufficient early accelerated expansion lets today's observable region originate from a much smaller causally connected patch. This is a mechanism class, not a directly observed movie of one confirmed field.

A particle horizon marks the greatest comoving distance from which light could have reached us since the relevant early boundary of the model. An event horizon, when present, concerns which signals emitted now can ever reach us in the future. Neither is a material wall at the edge of space.

Bound systems do not simply swell with a(t): electromagnetic and local gravitational binding dominate. Expansion is clearest across sufficiently large, unbound distances. Likewise, the familiar 5/27/68 inventory is a present-epoch parameter summary inside ΛCDM, not a replacement for the history described by the changing density of each component.

The Hubble rate is the scale factor's growth rate divided by the scale factor.

The fractional expansion rate of the universe at cosmic time t.

H(t)
Hubble parameter at time t · per second
a(t)
cosmic scale factor
ȧ(t)
rate of change of the scale factor · per second when a is dimensionless
The expansion rate squared equals a density term minus a curvature term plus a cosmological-constant term.

The first Friedmann equation is the central balance connecting large-scale expansion with energy density, spatial curvature, and Λ.

H
Hubble expansion parameter at the chosen time · per second
G
gravitational constant · m³ kg⁻¹ s⁻²
ρ
combined mass-equivalent density of matter and radiation components, excluding the separately written Λ term · kilogram per cubic metre
k
spatial-curvature constant, defined so kc²/a² has units of inverse seconds squared
c
speed of light · metre per second
a
dimensionless scale factor in this convention
Λ
cosmological constant · per square metre
One plus redshift equals the scale factor now divided by the scale factor when the light was emitted.

Cosmological redshift records how much the large-scale geometry expanded while the light travelled.

z
cosmological redshift
a(now)
scale factor at observation
a(emission)
scale factor at emission
Critical density equals three times the Hubble rate squared divided by eight pi G.

In the standard homogeneous model, this is the total effective density—including any vacuum-equivalent Λ contribution—corresponding to zero spatial curvature at that time.

ρcritical
critical total effective mass-equivalent density · kilogram per cubic metre
H
Hubble expansion parameter · per second
G
gravitational constant · m³ kg⁻¹ s⁻²
  • Leading early mechanism: an inflationary phase may set initial conditions for the later hot expansion; its detailed physics remains unsettled.
  • First minutes: light nuclei form in primordial nucleosynthesis.
  • About 380,000 years: neutral atoms form and the cosmic microwave background travels freely.
  • Hundreds of millions of years onward: stars, galaxies, and large-scale structure grow from early density variations.
  • Several billion years ago onward: the large-scale expansion changes from deceleration to acceleration in the standard fit.
Pause and predictIf observations say space is close to flat, does that mean the universe is static or definitely infinite?

No. Spatial flatness describes large-scale geometry at a cosmic time; the scale factor can still change. Flatness also does not uniquely determine global size or topology. A flat universe may be infinite, or it may have a finite multiply connected topology.

The expansion speeds up

Dark energy is the name of the question

Why are distant galaxies separating faster than matter and gravity alone predict?

Measurements of exploding stars, the microwave background, and the cosmic web indicate that cosmic expansion began accelerating several billion years ago.

General relativity allows the expansion rate to accelerate if the universe contains an ingredient with sufficiently negative pressure. The simplest version is the cosmological constant Λ, a constant in Einstein's field equation that is mathematically equivalent to a constant vacuum-energy density.

'Dark energy' does not tell us that a fluid has been bottled in a laboratory. It names whatever accounts for the acceleration within our cosmological description. It could be Λ, a changing field, a sign that gravity behaves differently across enormous distances, or evidence that the model is incomplete.

DESI's first three years, combined with other datasets, strengthened hints that the effective dark-energy behavior may evolve. As of July 2026, DESI has completed its planned five-year observations, but the first full-survey dark-energy analysis is expected in 2027. The published hint has not reached the standard required for a discovery and depends on combining probes. A good frontier keeps the excitement and the uncertainty in the same sentence.

The turn

The honest frontier is not a list of exotic answers. It is a sharply measured mismatch whose possible answers make different predictions.

  • Slowing expansion
  • Steady expansion
  • Accelerating expansion
Dark energy names the cause of the accelerating curve, not a confirmed microscopic object.
Make it precisePressure can gravitate

In relativistic cosmology, both energy density and pressure influence acceleration.

The equation-of-state parameter w compares pressure p with mass-equivalent energy density ρ. Matter diluted by expansion has w near 0; radiation has w = 1/3; a cosmological constant has w = −1.

A measured w that changes with time would rule out a strict cosmological constant, but extracting w requires a cosmological model and multiple calibrated distance and structure probes.

W equals pressure divided by energy density.

A compact description of how a cosmic component's pressure relates to its mass-energy density.

w
equation-of-state parameter
p
pressure · pascal
ρ
mass density · kilogram per cubic metre
c
speed of light · metre per second
Pause and predictIf cosmic expansion accelerates, why does the glass not stretch with it?

Cosmic expansion describes changing distances across sufficiently large, unbound regions. Electromagnetic binding holds the glass together, while local gravity binds the solar system and galaxies far more strongly than the tiny expansion effect across those scales.

A map with honest edges

Physics is powerful because it says where it stops

If physics has gaps, why trust the rest of it?

Because a model can be extraordinarily reliable inside a tested domain without being the final description of everything. Its boundary is part of its meaning.

Quantum field theory describes particles while general relativity describes gravity and spacetime, yet their usual forms do not make a complete theory in regimes where both must be fully quantum—such as the earliest accessible moments or the deep interior of a black hole.

Dark matter is inferred from several gravitational effects but its identity is unknown. Cosmic acceleration is observed, while the cause labeled dark energy remains unknown. Matter outweighs antimatter in our region for reasons not fully explained. Neutrino masses already tell us the minimal Standard Model is not the last word.

New theories do not erase old successes. Relativity contains Newtonian mechanics as an excellent low-speed, weak-gravity limit. Classical behavior emerges from quantum theory through decoherence, coarse-graining, and states whose relevant actions are large compared with Planck's constant—not from size alone. Progress often widens the map while preserving the roads that already worked.

The turn

Physics is not a pile of final answers. It is a disciplined way to compress experience into models, expose their limits, and design the next question.

  • Well-tested map
  • Open edges
  • New measurements
The blank spaces are not failures of the map; they are instructions for where to measure next.
Make it preciseEffective theories are a strength

A useful theory states the scales and conditions under which its neglected details remain small.

An effective theory orders corrections by their expected size. Engineers can use Newton's laws without solving quantum gravity because the missing corrections are fantastically small in that domain.

The frontier begins where corrections are no longer small, observations disagree, or a successful framework leaves parameters and ingredients unexplained.

  • Quantum gravity: make spacetime and quantum theory mutually consistent in extreme regimes.
  • Cosmic inventory: identify dark matter and explain accelerated expansion.
  • Origins: explain the matter–antimatter imbalance, neutrino masses, and the special early state.
  • Complexity: connect microscopic law to turbulence, life, and other organized many-body phenomena.
Pause and predictDoes finding a deeper theory make today's physics wrong?

Usually it makes today's theory a limiting case: still reliable where it was tested, but now understood as part of a wider framework.

Carry this forwardThe laws developed at human and atomic scales are tested again on the largest available laboratory: the observable universe.

Now connect the map

Physics connects sideways, too

You have met the pieces. These trails revisit the ideas that returned under new names and at new scales.

Return to the table

The glass was the map

The glass does not fall because gravity and the table's upward electromagnetic and quantum response balance. It feels solid because electrons occupy quantum states under the Pauli exclusion principle and charged matter strongly resists overlap. Its water flows because molecular bonds permit a liquid phase; it cools because energy spreads into more microscopic arrangements.

The sunlight on its rim is an electromagnetic wave and a stream of quantum energy transfers. Its atoms were assembled from particles described by quantum fields. Many of its heavier nuclei were made in stars. The whole scene sits inside an expanding spacetime whose dark gravitational and expansion effects we infer more clearly than we can identify.

That is how the pieces fit. Physics is one connected practice: choose what can be measured, build the smallest model that predicts it, find the symmetry and conservation underneath, and mark the boundary where a better question must begin.

Evidence behind the map

Sources and further paths

The main route favors understanding over citation clutter. These authoritative references support key claims and mark where to continue.

  1. The Feynman Lectures, Volume I: Basic PhysicsCalifornia Institute of Technology

    A model for connecting ordinary phenomena before separating physics into subjects.

  2. The Feynman Lectures, Volume III: Quantum BehaviorCalifornia Institute of Technology

    Introduces quantum theory through the double-slit experiment and probability amplitudes.

  3. The Feynman Lectures, Volume III: Symmetry and Conservation LawsCalifornia Institute of Technology

    A conceptual account of symmetry and its role in physical law.

  4. Measurement uncertaintyNational Institute of Standards and Technology

    Authoritative orientation to measured values, uncertainty, and traceability.

  5. The International System of UnitsInternational Bureau of Weights and Measures

    Definitions of the SI units and the measurement system used throughout physics.

  6. Einstein's spacetime and the equivalence principleStanford Gravity Probe B

    Educational account of the physical and mathematical foundations of general relativity.

  7. Gravitational wavesLIGO Scientific Collaboration

    How gravitational waves are produced, detected, and used as evidence for dynamical spacetime.

  8. How entanglement has become a powerful toolThe Royal Swedish Academy of Sciences

    Bell inequalities, entangled photons, and the experiments that exclude local hidden-variable accounts.

  9. The Standard ModelCERN

    The established particle-physics framework, its particles and interactions, and its known omissions.

  10. Review of Particle Physics, 2026 editionParticle Data Group

    The current annual reference values and 118 expert reviews spanning particles, interactions, astrophysics, and cosmology.

  11. StarsNASA Science

    Stellar structure, evolution, spectra, and the production of elements.

  12. The universe's historyNASA Science

    Evidence-based overview of expansion, nucleosynthesis, the cosmic microwave background, and structure formation.

  13. Hubble and dark matterNASA Science

    The converging gravitational evidence for unseen mass and the distinction between evidence and identity.

  14. What is dark energy?NASA Science

    Current evidence for accelerating expansion and leading categories of explanation.

  15. DESI three-year results on evolving dark energyDark Energy Spectroscopic Instrument

    Official report on combined-data hints that dark energy may evolve; not a discovery and not decisive on its own.

  16. DESI completes its planned five-year mapDark Energy Spectroscopic Instrument

    Confirms that observations are complete while the first full-survey dark-energy analysis is expected in 2027.
